Package Contains 4 Shocks
You'll be getting two front and two rear shock absorbers.🚚 Free Worldwide Shipping on All Orders!Shop Now

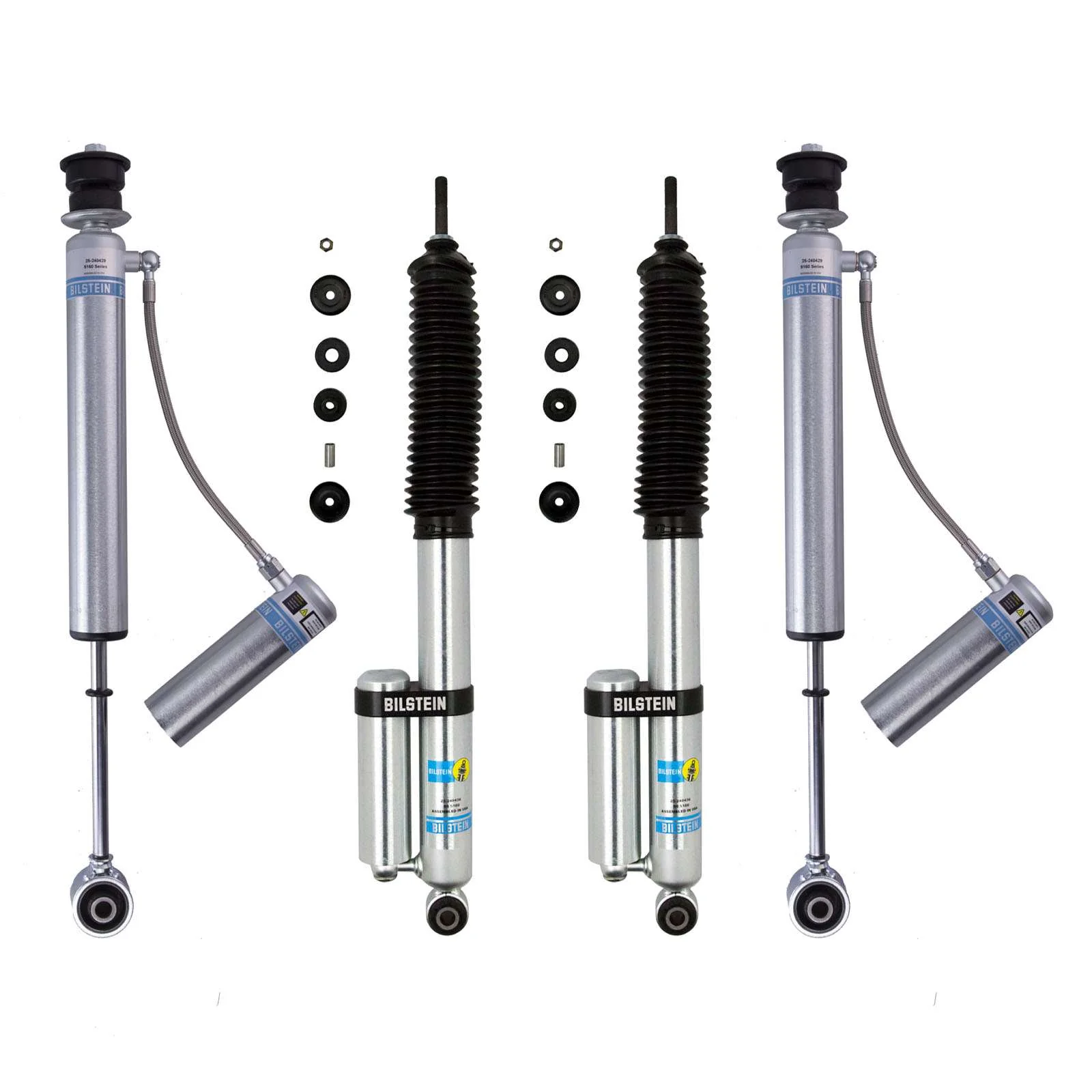

Bilstein 5160 Reservoir Shocks Set - 2014-2024 Ram 2500 Power Wagon
Part Numbers & Details
Bilstein 2 Year Warranty
Manufacturer Warranty protects against defects and premature failure.Fits vehicles with 2-2.5" front lift
Shocks are extended length for 2-2.5" front lift systems and up to 1" rear lift systemsDesigned for 4WD vehicles
This product only works for 4WD vehicles.Important Fitment Note
Fits Gas models only.Reservoir Mounts Included
All necessary washers, bushings, and nuts included. Factory shock mounting bolts are reused for installation. An optional billet aluminum reservoir clamp is available for a more clean and compact look.Rugged Reservoir Design
Added external reservoir provides increased control and durability over the harshest terrainDigressive Valving System
Digressive valving provides increased control over unwanted body motions with increased bump complianceSpecifications
| Part Number | Lift/Lowered | Position | Item | Quantity | Extended Length | Compressed Length | Travel | Top Mount | Bottom Mount | Reservoir | Color | Finish | Boot Included | Internal Design |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 25-293449 | 0-1.5" Lift | Rear | Shock Absorber | 2 | 25.71" | 17.17" | 8.54" | EYELET | STEM | Yes | Silver | Zinc Plated | No | Monotube |
| 25-293432 | 0-1.5" Lift | Front | Shock Absorber | 2 | 24.04" | 15.22" | 8.82" | STEM | EYELET | Yes | Silver | Zinc Plated | No | Monotube |
| 25-331905 | 2-3" |
Rear | Shock Absorber | Shock Absorber | 28.19" | 18.66" | 9.53" | EYELET | EYELET | Yes | Silver | Zinc Plated | No | Monotube |
| 25-331936 | 2-3" | Front | Shock Absorber | 2 | 26.74" | 16.96" | 9.78" | STEM | EYELET | Yes | Silver | Zinc Plated | No | Monotube |
Product Details
With an added remote reservoir, the Bilstein B8 5160 provides ultimate vehicle control on even the harshest terrain. Zinc plating and increased oil capacity dissipate more heat assuring long term durability. Reservoir mounts are included in the box. An optional billet aluminum reservoir clamp is available for a more clean and compact look.
Select Front Ride Height
Select Rear Ride Height
From $420.00
Original: $1,199.99
-65%Bilstein 5160 Reservoir Shocks Set - 2014-2024 Ram 2500 Power Wagon—
$1,199.99
$420.00More Images
Bilstein 5160 Reservoir Shocks Set - 2014-2024 Ram 2500 Power Wagon
Part Numbers & Details
Package Contains 4 Shocks
You'll be getting two front and two rear shock absorbers.Bilstein 2 Year Warranty
Manufacturer Warranty protects against defects and premature failure.Fits vehicles with 2-2.5" front lift
Shocks are extended length for 2-2.5" front lift systems and up to 1" rear lift systemsDesigned for 4WD vehicles
This product only works for 4WD vehicles.Important Fitment Note
Fits Gas models only.Reservoir Mounts Included
All necessary washers, bushings, and nuts included. Factory shock mounting bolts are reused for installation. An optional billet aluminum reservoir clamp is available for a more clean and compact look.Rugged Reservoir Design
Added external reservoir provides increased control and durability over the harshest terrainDigressive Valving System
Digressive valving provides increased control over unwanted body motions with increased bump complianceSpecifications
| Part Number | Lift/Lowered | Position | Item | Quantity | Extended Length | Compressed Length | Travel | Top Mount | Bottom Mount | Reservoir | Color | Finish | Boot Included | Internal Design |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 25-293449 | 0-1.5" Lift | Rear | Shock Absorber | 2 | 25.71" | 17.17" | 8.54" | EYELET | STEM | Yes | Silver | Zinc Plated | No | Monotube |
| 25-293432 | 0-1.5" Lift | Front | Shock Absorber | 2 | 24.04" | 15.22" | 8.82" | STEM | EYELET | Yes | Silver | Zinc Plated | No | Monotube |
| 25-331905 | 2-3" |
Rear | Shock Absorber | Shock Absorber | 28.19" | 18.66" | 9.53" | EYELET | EYELET | Yes | Silver | Zinc Plated | No | Monotube |
| 25-331936 | 2-3" | Front | Shock Absorber | 2 | 26.74" | 16.96" | 9.78" | STEM | EYELET | Yes | Silver | Zinc Plated | No | Monotube |
Product Details
With an added remote reservoir, the Bilstein B8 5160 provides ultimate vehicle control on even the harshest terrain. Zinc plating and increased oil capacity dissipate more heat assuring long term durability. Reservoir mounts are included in the box. An optional billet aluminum reservoir clamp is available for a more clean and compact look.
