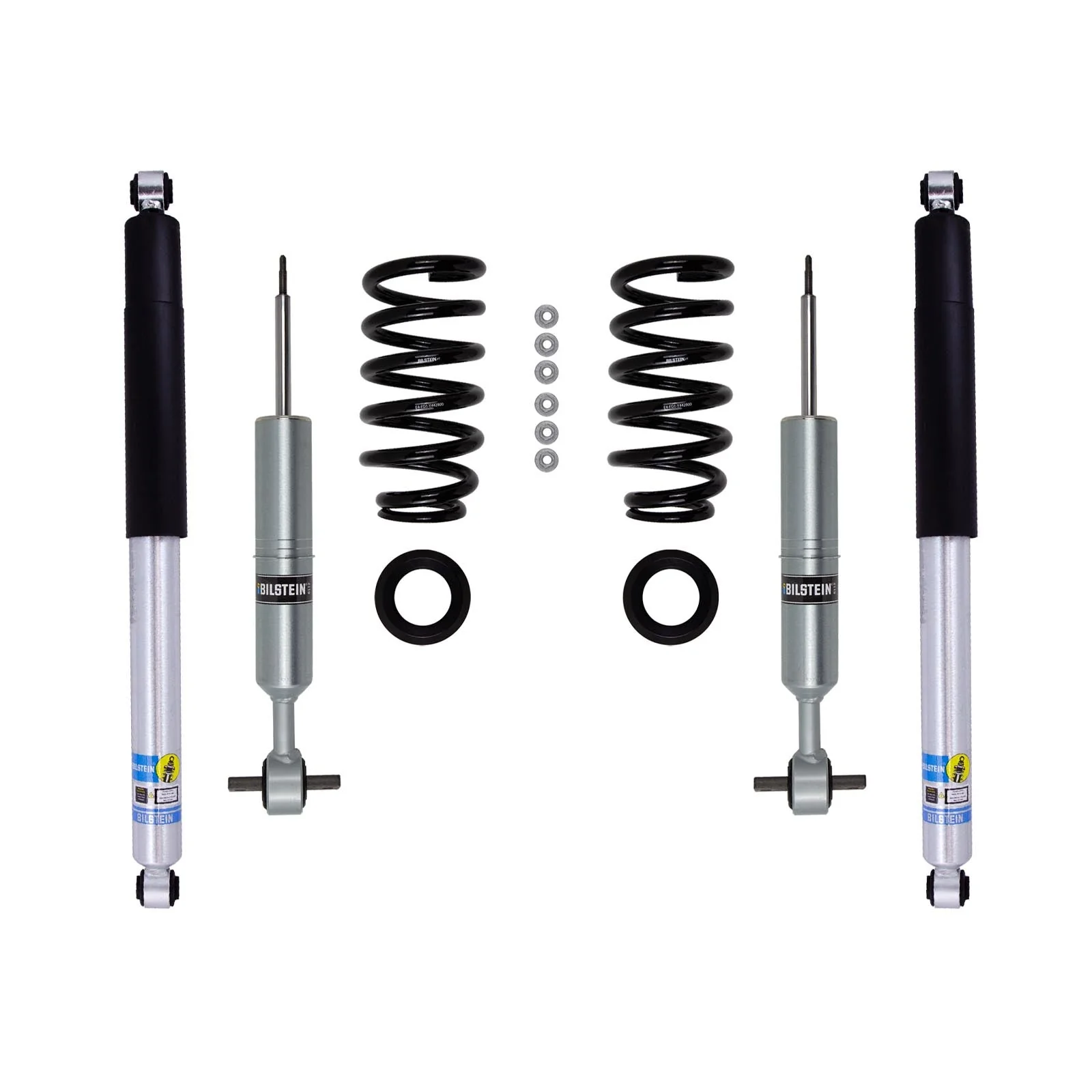

Package Contains 2 Front Shocks, 2 Coil Springs, 2 Coil Spring Seats, and 2 Rear Shocks
Kit includes two front shocks, two coil spring seats, two coil springs, two rear shocks. Coil spring compressor required for installation.🚚 Free Worldwide Shipping on All Orders!Shop Now
HomeStore
Bilstein 6112 Strut & Spring + Rear 5100 Shocks Set for 2019-2024 GMC Sierra 1500 AT4 4WD w/0-1.2" lift
Bilstein 6112 Strut & Spring + Rear 5100 Shocks Set for 2019-2024 GMC Sierra 1500 AT4 4WD w/0-1.2" lift
Part Numbers & Details
Bilstein Limited Lifetime Warranty

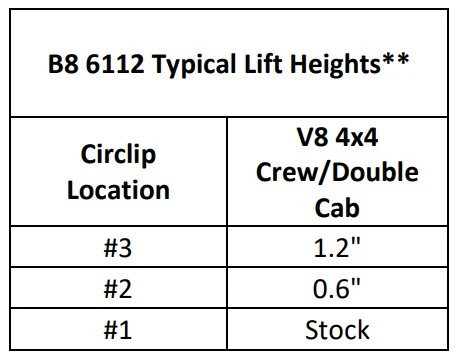

Manufacturer Warranty protects against defects and premature failure.Front height adjustment from 0-1.2"
Front height adjustment from 0-1.2" using the included coil spring collar and adjustable circlip. Accommodates up to 1" in the rearDesigned for 4WD vehicles
This product only works for 4WD vehicles.Fits AT4 Model Only
This 6112 kit is for AT4 only. Other Sierra 1500 models use a different part number.Coil-Spring Compressor Required
Strut & spring not assembled, coil-spring compressor required for installation. Front height adjustment is achieved by multiple coil-spring collar settings, lifting the vehicle up to specified height.Specifications
| Part Number | Lift/Lowered | Position | Item | Quantity |
|---|---|---|---|---|
| 47-309524 | 0-1.2" Lift | Front | Strut & Spring | 1 |
| 24-309516 | 0-1" Lift | Rear | Shock Absorber | 2 |
Product Details
Bilstein's 6112 shock and spring package is designed for the adventure enthusiast wanting more out of their daily-driver or weekend ride. Extremely capable not only off-road, but also dramatically improves on-road handling characteristics and road feedback. The height adjustment of the 6112 kit allows the drive to remain at factory height, or to level out the front end of the vehicle for larger wheel and tire clearance. This Bilstein kit rivals 2.5" race-series shocks and coilovers from the competition, in an easily accessible performance package that can get you almost anywhere off-road. The 5100 monotube design and patented digressive valving is uniquely suited to confront these demands. On or off-road, loaded or unloaded, Bilstein shocks instantly react to changing road inputs to maintain a stable, controlled, and comfortable ride. Bilstein's superior monotube high gas pressure design allows the excessive heat from the oil to transfer to the outer surface of the shock body and dissipate more efficiently. The dividing piston also permits the oil to expand as heat builds, preventing aeration (foaming) and viscosity loss. This allows the shock to maintain full damping characteristics as temperatures rise.
$1,109.99
Bilstein 6112 Strut & Spring + Rear 5100 Shocks Set for 2019-2024 GMC Sierra 1500 AT4 4WD w/0-1.2" lift—
$1,109.99
More Images
Bilstein 6112 Strut & Spring + Rear 5100 Shocks Set for 2019-2024 GMC Sierra 1500 AT4 4WD w/0-1.2" lift
Part Numbers & Details
Package Contains 2 Front Shocks, 2 Coil Springs, 2 Coil Spring Seats, and 2 Rear Shocks
Kit includes two front shocks, two coil spring seats, two coil springs, two rear shocks. Coil spring compressor required for installation.Bilstein Limited Lifetime Warranty
Manufacturer Warranty protects against defects and premature failure.Front height adjustment from 0-1.2"
Front height adjustment from 0-1.2" using the included coil spring collar and adjustable circlip. Accommodates up to 1" in the rearDesigned for 4WD vehicles
This product only works for 4WD vehicles.Fits AT4 Model Only
This 6112 kit is for AT4 only. Other Sierra 1500 models use a different part number.Coil-Spring Compressor Required
Strut & spring not assembled, coil-spring compressor required for installation. Front height adjustment is achieved by multiple coil-spring collar settings, lifting the vehicle up to specified height.Specifications
| Part Number | Lift/Lowered | Position | Item | Quantity |
|---|---|---|---|---|
| 47-309524 | 0-1.2" Lift | Front | Strut & Spring | 1 |
| 24-309516 | 0-1" Lift | Rear | Shock Absorber | 2 |
Product Details
Bilstein's 6112 shock and spring package is designed for the adventure enthusiast wanting more out of their daily-driver or weekend ride. Extremely capable not only off-road, but also dramatically improves on-road handling characteristics and road feedback. The height adjustment of the 6112 kit allows the drive to remain at factory height, or to level out the front end of the vehicle for larger wheel and tire clearance. This Bilstein kit rivals 2.5" race-series shocks and coilovers from the competition, in an easily accessible performance package that can get you almost anywhere off-road. The 5100 monotube design and patented digressive valving is uniquely suited to confront these demands. On or off-road, loaded or unloaded, Bilstein shocks instantly react to changing road inputs to maintain a stable, controlled, and comfortable ride. Bilstein's superior monotube high gas pressure design allows the excessive heat from the oil to transfer to the outer surface of the shock body and dissipate more efficiently. The dividing piston also permits the oil to expand as heat builds, preventing aeration (foaming) and viscosity loss. This allows the shock to maintain full damping characteristics as temperatures rise.
