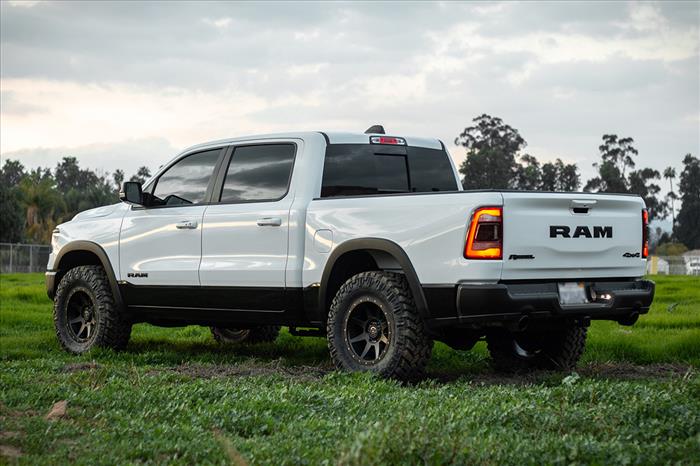

Bilstein 8112 2.5" Lift System - 2019-2026 Ram 1500
About this Page:
Front and rear shocks are included in the base kit and price.
Any changes to the default selections in the drop down menus will either upgrade your shocks or add additional parts to your build (IE., control arms, springs, etc.). By default, those additional parts and upgrades are not selected. All additional options have their associated change in prices.
Custom Build
This Lift System is built to your personal vehicle specs and will be pieced together for you.
Estimated time to deliver will vary from 4-6 weeks, depending on Bilstein availability
Contact your sales rep for details: [email protected]
Bilstein Front Left - 41-242513 superseded to 41-325247
Bilstein Front Right - 41-242391 superseded to 41-325230
Bilstein Rear 5'7 Bed - 25-281804 /Â 25-259018 Discontinued
Bilstein Rear 6'4 Bed - 25-316230 / 25-316247 Discontinued
Bilstein Rear Left - 25-324075
Bilstein Rear Right - 25-281873
Important 2019+ Ram Notes:
Bilstein's 8112 coilovers were designed around the 5.7L V8 engine, utilizing a 450lb coil spring. If you have a diesel engine, heavier coil springs can be acquired to mount to the 8112s, which will require additional service on our end to acquire the new springs, disassemble the 8112s, and replace with a heavier duty spring.
These shocks will fit to Offroad-Package equipped vehicles, but will not achieve the stated lift amount (1.25-2.5"). These shocks will not work with Air Leveling Suspensions.
Rear bed lengths will require different shock selections due to the placement of the remote reservoirs.
Upper Control Arms
All available arms allow for more suspension articulation compared to stock arms on a lifted vehicle, and is required for alignment when trying to achieve maximum lift out of the coilovers (2.5-3").
- Icon Vehicle Dynamics Tubular Delta Joint -$849.95 -Â 218550DJ
- Camburg 1.25 Performance Uniball -$849.99 -Â 810001
Rear Lift Options
- Icon Vehicle Dynamics Rear Dual Rate +1.5" Lift Springs -$289.95 -Â 212150

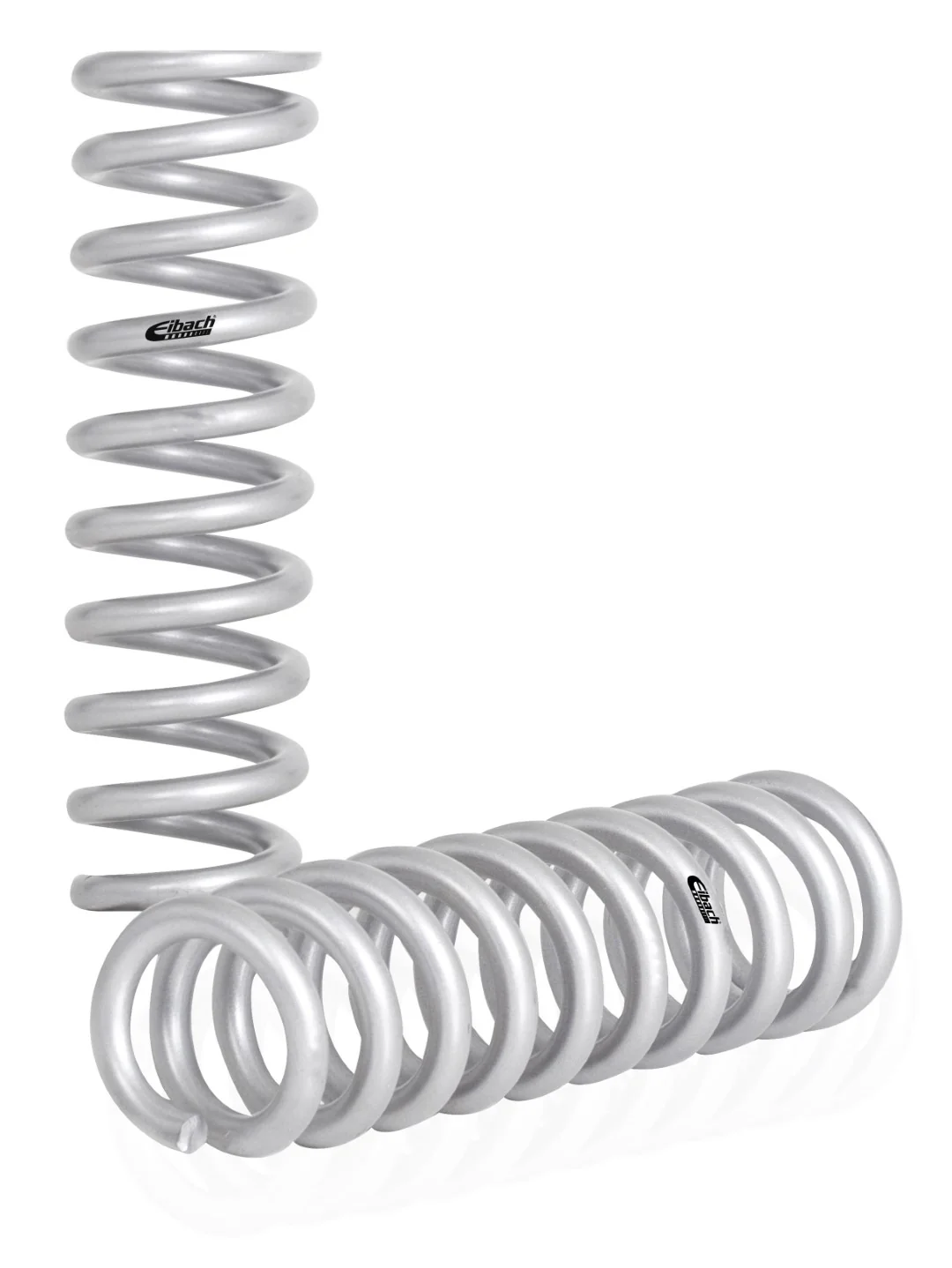

- Eibach Rear Lift Springs +1.0" -$179.00 -Â E30-27-011-02-02
- Bilstein Rear Lift Springs +1.0" -$304.00 -Â 53-297839 | Vehicles without factory off road package
Helper Spring Options

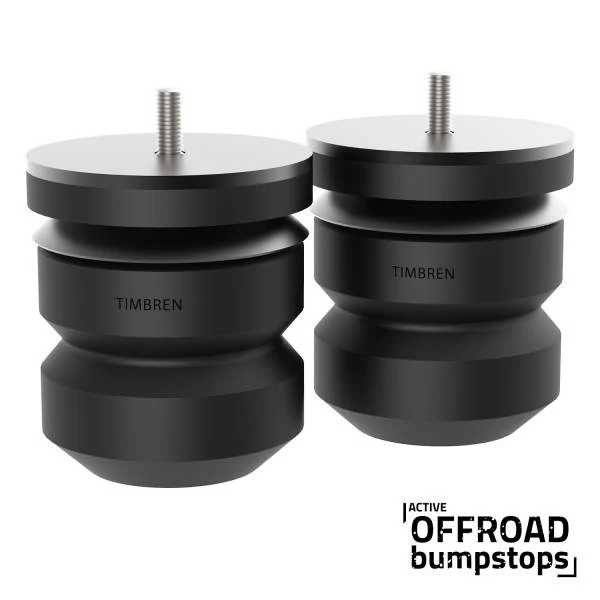

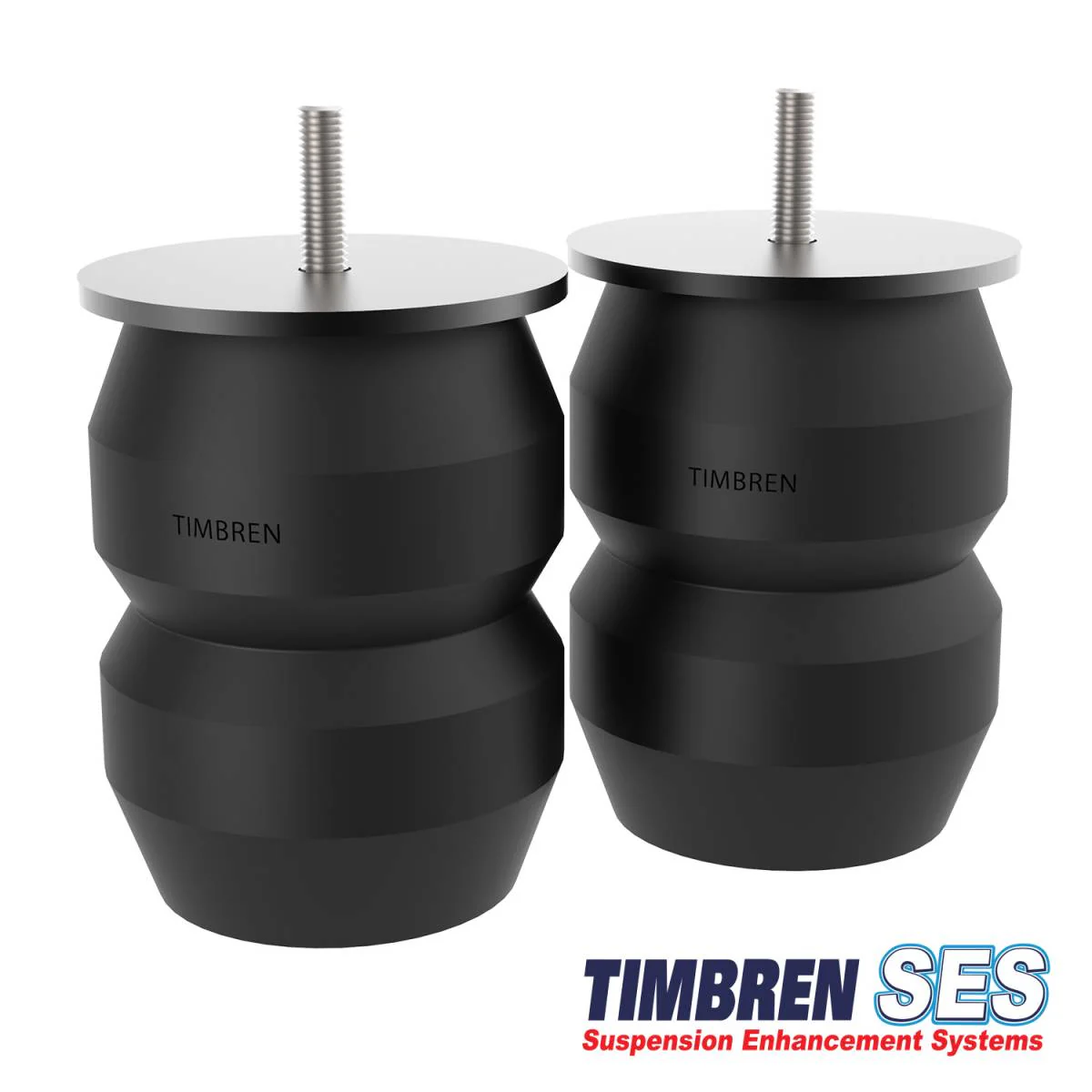

Timbren Helper springs replaces the factory jounce stop on the frame with progressive rate rubber springs, which adjust automatically to load inputs. These kit do not increase GWVR.
