Package Contains 2 Struts and 2 Shocks
Set of two front struts and two rear shocks.🚚 Free Worldwide Shipping on All Orders!Shop Now

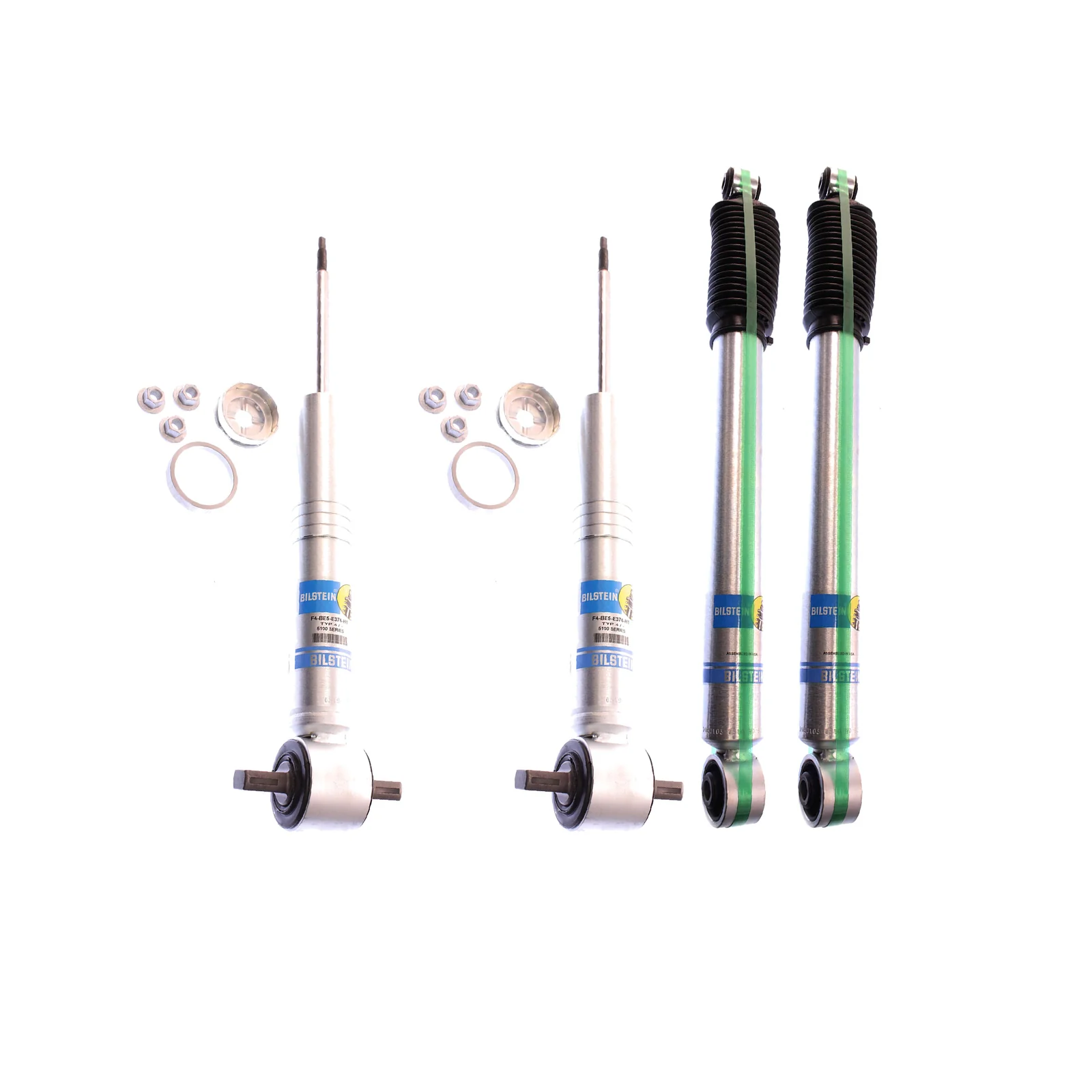

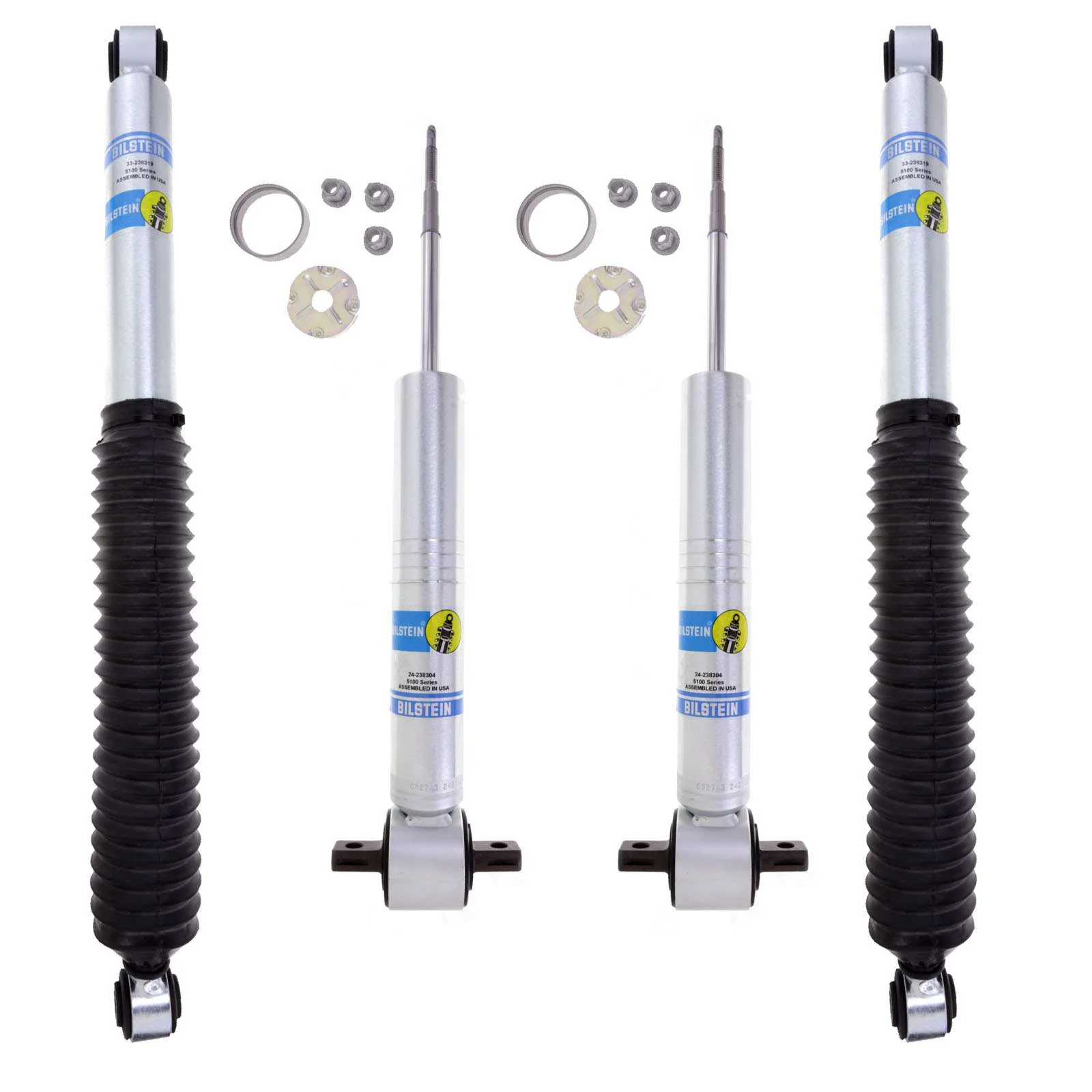

Bilstein 5100 Shocks Set for 2007-2013 Chevrolet Silverado 1500 4WD RWD
Part Numbers & Details
Bilstein Limited Lifetime Warranty
Manufacturer Warranty protects against defects and premature failure.Choose Your Desired Lift Height Above
Make a selection from the drop-down menu above to get the correct length strut & shock for your vehicle.Important Fitment Note
These parts fit models with front struts ONLY and will not fit "Classic" Silverado/Sierra 1500 models. Excludes HD Models.Fits 4WD & RWD vehicles
This product works for 4WD and RWD vehicles.Factory Hardware for Installation
All necessary washers, bushings, and nuts included. Factory shock mounting bolts are reused for installation.Levels Your Truck
Levels the front of your truck to the rear, through the adjustable height coil spring collar, using your factory coil springs, see instructions for height specifics.Better Handling On and Off-Road
Bilstein's self adjusting digressive piston, providing increased road handling characteristics, and improved off-road handling.Nitrogen Gas Charged
High pressure nitrogen gas charge for optimum performance in tough conditions.Durable and long lasting
Zinc plate finish, providing corrosion and rust resistance in harsh environments.Read More
Blog Post: Bilstein 5100 vs. 4600 Major Differences
Specifications
| Part Number Options | Lift/Lowered | Position | Item | Quantity | Extended Length | Compressed Length | Travel | Top Mount | Bottom Mount | Reservoir | Color | Finish | Boot Included | Internal Design |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 24-186940 | 0-1.75" Lift | Front | Shock Absorber | 2 | 18.48" | 12.95" | 5.53" | STEM | BARPIN | No | Silver | Zinc Plated | No | Monotube |
| 24-293082 | 0-1" Lift | Rear | Shock Absorber | 2 | 25.39" | 16.53" | 8.86" | EYELET | EYELET | No | Silver | Zinc Plated | Black Straight | Monotube |
| 24-186636 | 4.0" Lift | Rear | Shock Absorber | 2 | 29.92" | 18.17" | 11.75" | EYELET | EYELET | No | Silver | Zinc Plated | Black Bellows | Monotube |
| 24-186940 | 6.0" Lift | Front | Shock Absorber | 2 | 18.48" | 12.95" | 5.53" | STEM | BARPIN | No | Silver | Zinc Plated | No | Monotube |
Product Details
Bilstein's 5100 series adjustable height struts not only allow the leveling of your vehicle using your factory coil springs, the shocks are also a significant upgrade for on and off-road handling. The corrosion resistant zinc finish provides protection in harsh environments, wet climates, or salty roads. The digressive piston provides an improvement in road handling, decrease in body roll / sway, and a decrease in nose dive.
Select Front Lift
Select Rear Lift
From $192.50
Original: $549.99
-65%Bilstein 5100 Shocks Set for 2007-2013 Chevrolet Silverado 1500 4WD RWD—
$549.99
$192.50More Images
Bilstein 5100 Shocks Set for 2007-2013 Chevrolet Silverado 1500 4WD RWD
Part Numbers & Details
Package Contains 2 Struts and 2 Shocks
Set of two front struts and two rear shocks.Bilstein Limited Lifetime Warranty
Manufacturer Warranty protects against defects and premature failure.Choose Your Desired Lift Height Above
Make a selection from the drop-down menu above to get the correct length strut & shock for your vehicle.Important Fitment Note
These parts fit models with front struts ONLY and will not fit "Classic" Silverado/Sierra 1500 models. Excludes HD Models.Fits 4WD & RWD vehicles
This product works for 4WD and RWD vehicles.Factory Hardware for Installation
All necessary washers, bushings, and nuts included. Factory shock mounting bolts are reused for installation.Levels Your Truck
Levels the front of your truck to the rear, through the adjustable height coil spring collar, using your factory coil springs, see instructions for height specifics.Better Handling On and Off-Road
Bilstein's self adjusting digressive piston, providing increased road handling characteristics, and improved off-road handling.Nitrogen Gas Charged
High pressure nitrogen gas charge for optimum performance in tough conditions.Durable and long lasting
Zinc plate finish, providing corrosion and rust resistance in harsh environments.Read More
Blog Post: Bilstein 5100 vs. 4600 Major Differences
Specifications
| Part Number Options | Lift/Lowered | Position | Item | Quantity | Extended Length | Compressed Length | Travel | Top Mount | Bottom Mount | Reservoir | Color | Finish | Boot Included | Internal Design |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 24-186940 | 0-1.75" Lift | Front | Shock Absorber | 2 | 18.48" | 12.95" | 5.53" | STEM | BARPIN | No | Silver | Zinc Plated | No | Monotube |
| 24-293082 | 0-1" Lift | Rear | Shock Absorber | 2 | 25.39" | 16.53" | 8.86" | EYELET | EYELET | No | Silver | Zinc Plated | Black Straight | Monotube |
| 24-186636 | 4.0" Lift | Rear | Shock Absorber | 2 | 29.92" | 18.17" | 11.75" | EYELET | EYELET | No | Silver | Zinc Plated | Black Bellows | Monotube |
| 24-186940 | 6.0" Lift | Front | Shock Absorber | 2 | 18.48" | 12.95" | 5.53" | STEM | BARPIN | No | Silver | Zinc Plated | No | Monotube |
Product Details
Bilstein's 5100 series adjustable height struts not only allow the leveling of your vehicle using your factory coil springs, the shocks are also a significant upgrade for on and off-road handling. The corrosion resistant zinc finish provides protection in harsh environments, wet climates, or salty roads. The digressive piston provides an improvement in road handling, decrease in body roll / sway, and a decrease in nose dive.
