Bilstein B8 5112 Leveling Kit + Rear 5100 Shocks for 2014-2022 Ram 2500 4WD w/2" lift Gas w/Air Susp
HomeStore

Bilstein B8 5112 Leveling Kit + Rear 5100 Shocks for 2014-2022 Ram 2500 4WD w/2" lift Gas w/Air Susp

Bilstein B8 5112 Leveling Kit + Rear 5100 Shocks for 2014-2022 Ram 2500 4WD w/2" lift Gas w/Air Susp

Part Numbers & Details

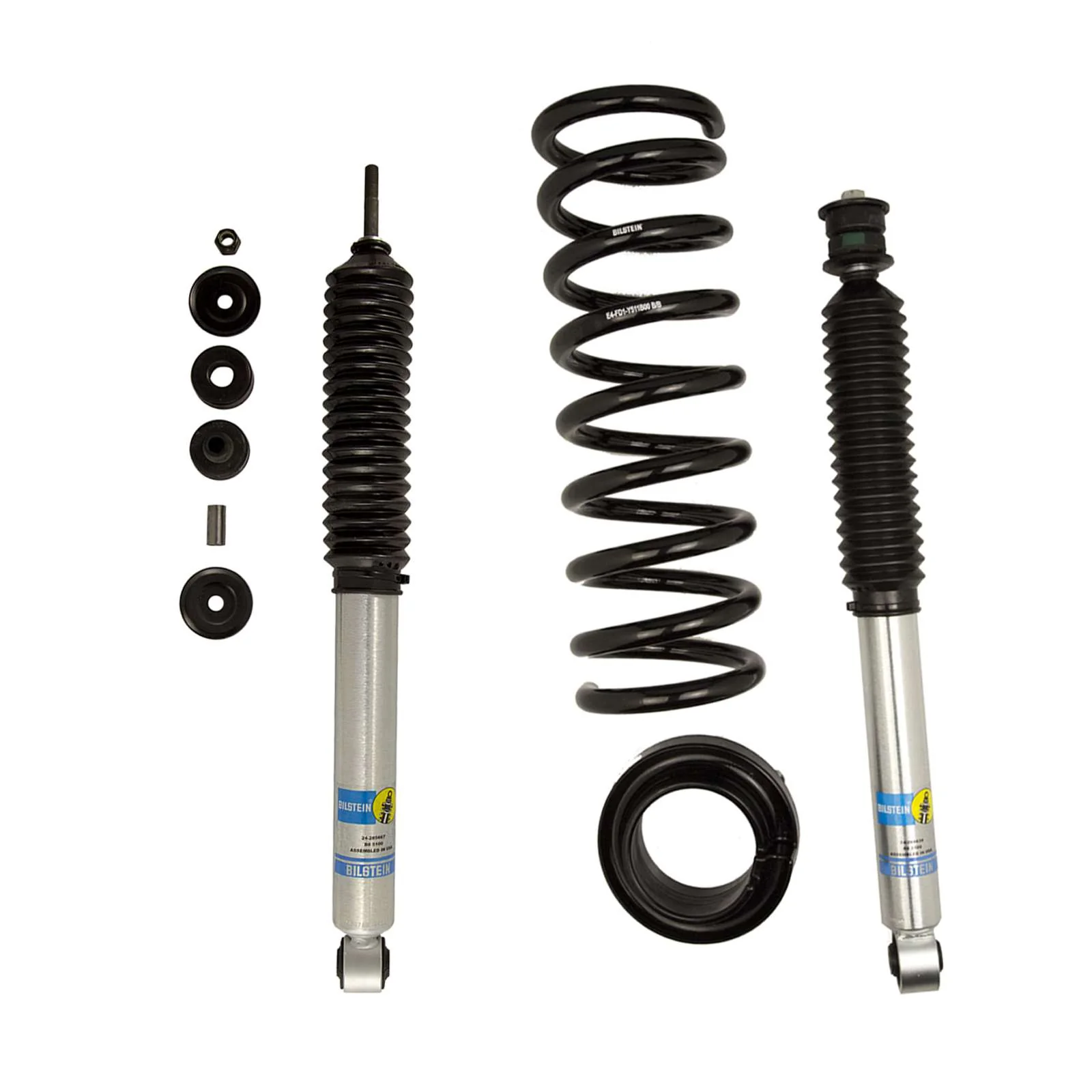

Package Contains 4 Shocks and 2 Springs
Set of two B8 5100 shock absorbers combined with two matched coil springs, and two rear B8 5100 monotube shocks.
Bilstein 90-Day Warranty
Manufacturer Warranty protects against defects and premature failure.
Fits vehicles with 2.0" front lift
Provides 2.0" front lift height out of the box, no adjustment or modifications required. Accommodates up to 1" rear lift systems
Designed for 4WD vehicles
This product only works for 4WD vehicles.
Important Fitment Note
Fits Gas vehicles WITH Air Suspension only. Excludes Diesel models.
Factory Hardware for Installation
All necessary washers, bushings, and nuts included. Factory shock mounting bolts are reused for installation.
Tuned to Your Vehicle
Includes Bilstein B8 5100 Monotube Gas Shocks matched to a vehicle specific spring designed to help level your vehicle.
Improved Ride Comfort
Increased ride comfort and stability on and off the road.
Versatile Design
Reduces body roll and nose dive, while being more compliant over bumps and holes, ideal for daily driven vehicles that also off-road for fun or work.
Durable and long lasting
Zinc plate finish, providing corrosion and rust resistance in harsh environments.
Specifications
Part Number Lift/Lowered Position Item Quantity Extended Length Compressed Length Travel Top Mount Bottom Mount Reservoir Color Finish Boot Included Internal Design
24-285667 0-1" Lift Rear Shock Absorber 2 22.97" 16.56" 6.41" STEM EYELET No Silver Zinc Plated Black Bellows Monotube
46-268655 2.0" Lift Front Leveling Kit 1 No Silver Dampers: Zinc Plated/Springs: Black Black Bellows Monotube
Product Details

Bilstein B8 5112 suspension kit is a high performance leveling kit which provides more ground clearance, allows for larger tires, and increases wheel travel. The Bilstein B8 5112 suspension kit is for front applications and consists of two B8 5100 shock absorbers combined with two matched coil springs. This simple yet effective kit will bolt into the factory locations with no modifications. The Bilstein B8 5112 suspension kit provides a smooth and stable ride both on and off-road.

Bilstein 5100 shocks utilize a monotube design, with a 46mm digressive piston, to increase road handling characteristics both on and off-road. The single tube body allows for rapid heat transfer between the shock oil to the shock body, and then dissipated further to reduce shock fade.
