Package Contains 2 Shocks
Rear pair of two shock absorbers.🚚 Free Worldwide Shipping on All Orders!Shop Now

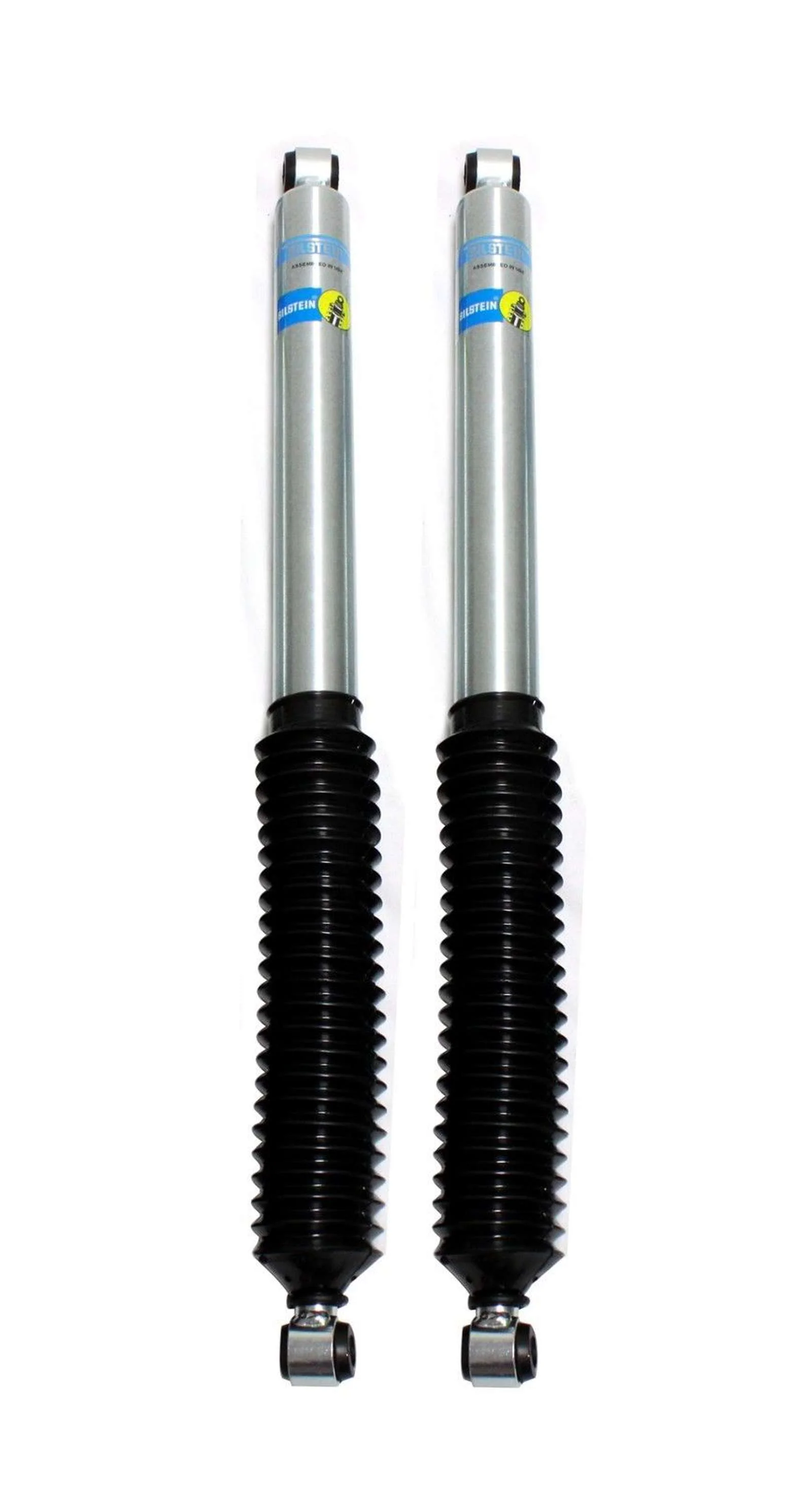

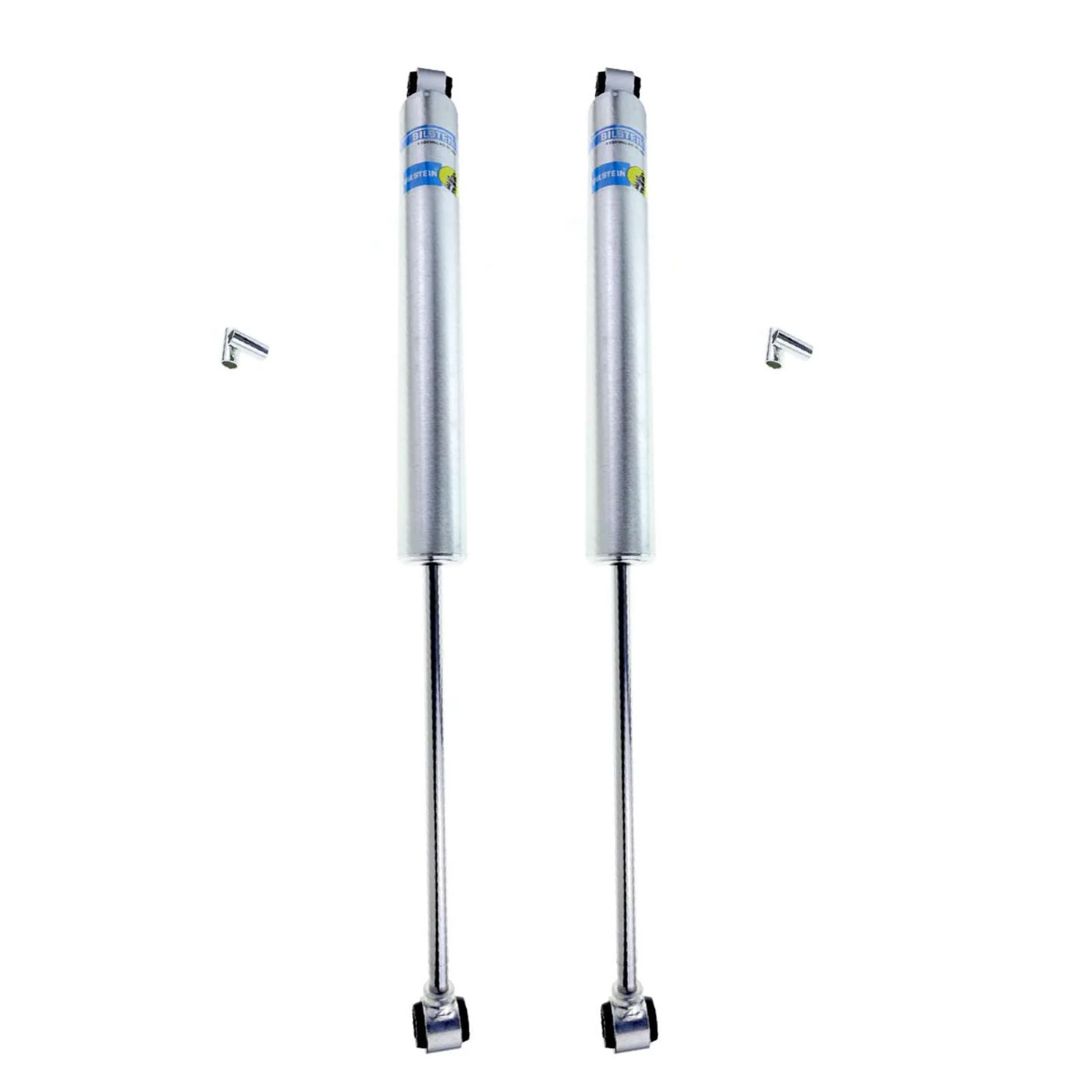

Bilstein B8 5125 Monotube Shocks Rear Pair for 1973-1987 Chevrolet K30 4WD
Part Numbers & Details
Bilstein 90-Day Warranty
Manufacturer Warranty protects against defects and premature failure.Choose Your Desired Lift Height Above
Make a selection from the drop-down menu above to get the correct length shock absorber for your vehicle.Designed for 4WD vehicles
This product only works for 4WD vehicles.Factory Hardware for Installation
All necessary washers, bushings, and nuts included. Factory shock mounting bolts are reused for installation.Specifications
| Part Number Options | Lift/Lowered | Position | Item | Quantity | Extended Length | Compressed Length | Travel | Top Mount | Bottom Mount | Reservoir | Color | Finish | Boot Included | Internal Design |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 33-104652 | 2-2.5" Lift | Rear | Shock Absorber | 2 | 28" | 17.01" | 10.99" | EYELET | EYELET | No | Silver | Zinc Plated | Black Bellows | Monotube |
| 33-185576 | 4-6" Lift | Rear | Shock Absorber | 2 | 34.92" | 20.77" | 14.15" | EYELET | EYELET | No | Silver | Zinc Plated | No | Monotube |
| 33-185576 | 5-6" Lift | Rear | Shock Absorber | 2 | 34.92" | 20.77" | 14.15" | EYELET | EYELET | No | Silver | Zinc Plated | No | Monotube |
Product Details
Bilstein B8 5125 shock absorbers are designed for custom applications and are a perfect solution for vehicles that do not have a direct Bilstein fitment. These high gas pressure monotube shock absorbers are sold by various lengths and valve rates to accommodate a wide range of uses and custom fitments. All B8 5125 shock absorbers come equipped with industry standard 5/8 inch hour glass bushings and are available in either an eye/eye or stem/eye mount configuration. The shock absorbers feature a 46mm piston with self-adjusting deflective disc valving. Bilstein B8 5125 shock absorbers are the ideal choice for custom suspension builders.
Select Rear Lift
From $236.00
Bilstein B8 5125 Monotube Shocks Rear Pair for 1973-1987 Chevrolet K30 4WD—
$236.00
More Images
Bilstein B8 5125 Monotube Shocks Rear Pair for 1973-1987 Chevrolet K30 4WD
Part Numbers & Details
Package Contains 2 Shocks
Rear pair of two shock absorbers.Bilstein 90-Day Warranty
Manufacturer Warranty protects against defects and premature failure.Choose Your Desired Lift Height Above
Make a selection from the drop-down menu above to get the correct length shock absorber for your vehicle.Designed for 4WD vehicles
This product only works for 4WD vehicles.Factory Hardware for Installation
All necessary washers, bushings, and nuts included. Factory shock mounting bolts are reused for installation.Specifications
| Part Number Options | Lift/Lowered | Position | Item | Quantity | Extended Length | Compressed Length | Travel | Top Mount | Bottom Mount | Reservoir | Color | Finish | Boot Included | Internal Design |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 33-104652 | 2-2.5" Lift | Rear | Shock Absorber | 2 | 28" | 17.01" | 10.99" | EYELET | EYELET | No | Silver | Zinc Plated | Black Bellows | Monotube |
| 33-185576 | 4-6" Lift | Rear | Shock Absorber | 2 | 34.92" | 20.77" | 14.15" | EYELET | EYELET | No | Silver | Zinc Plated | No | Monotube |
| 33-185576 | 5-6" Lift | Rear | Shock Absorber | 2 | 34.92" | 20.77" | 14.15" | EYELET | EYELET | No | Silver | Zinc Plated | No | Monotube |
Product Details
Bilstein B8 5125 shock absorbers are designed for custom applications and are a perfect solution for vehicles that do not have a direct Bilstein fitment. These high gas pressure monotube shock absorbers are sold by various lengths and valve rates to accommodate a wide range of uses and custom fitments. All B8 5125 shock absorbers come equipped with industry standard 5/8 inch hour glass bushings and are available in either an eye/eye or stem/eye mount configuration. The shock absorbers feature a 46mm piston with self-adjusting deflective disc valving. Bilstein B8 5125 shock absorbers are the ideal choice for custom suspension builders.
