Package Contains 1 Shock
You'll be getting one shock absorber.🚚 Free Worldwide Shipping on All Orders!Shop Now

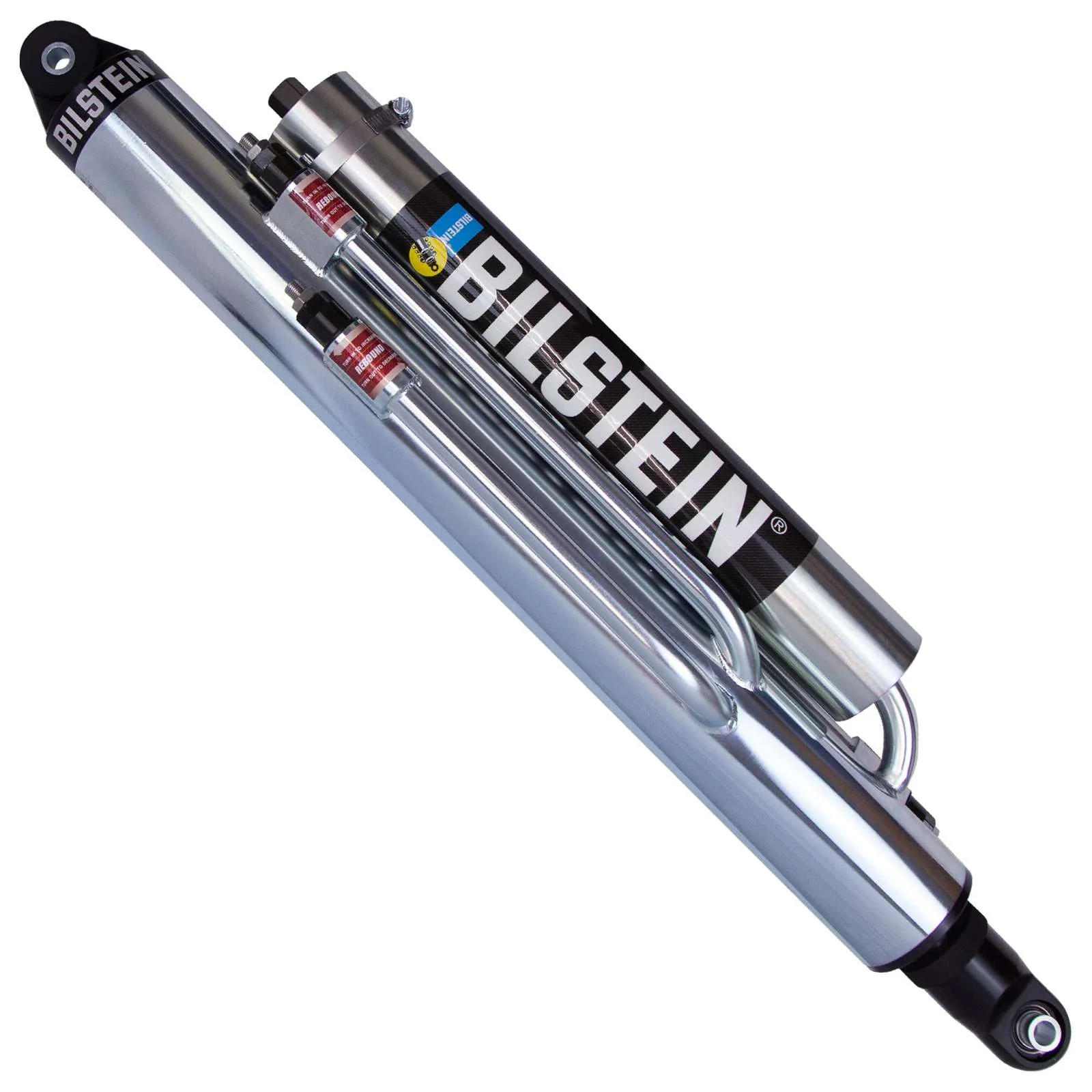

Bilstein M 9200 Bypass Shocks 33-250830
Part Numbers & Details
Bilstein 90-Day Warranty
Manufacturer Warranty protects against defects and premature failure.Mounting Hardware Not Included
5/8" stainless uniball mounts with 1/2" step spacers.Adjustable Dampening
Available in 3 tube and 4 tube (triple and qudruple bypass) designs with 6 zones of dampening control and 4 external dampening adjusters for high speed and low speed compression and rebound.Product Highlights
Available in 60 and 70mm monotube designs with multiple stroke lengths from 8"-18" and include 60mm piggyback reservoirsSpecifications
| Part Number | Item | Quantity | Extended Length | Compressed Length | Travel | Top Mount | Bottom Mount | Reservoir | Color | Finish | Internal Design |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 33-250830 | Shock Absorber | 1 | 46.5" | 28.5" | 18" | EYELET | EYELET | Yes | Silver | Zinc Plated | Monotube |
Product Details
Designed for porfessional off road motorsports Bilstein M 9200 (Bypass) shock absorbers are position sensitive and adjustable, offering 6 zones of damping control and 4 external adjusters: 2 rebound and 2 compression. Utilizing an externally adjustable bypass shock absorber is the easiest and most effective way to tune your off-road suspension for ultimate performance. M 9200 (Bypass) shock absorbers are available in either 3-tube or 4-tube configurations and include a piggyback reservoir. M 9200 (Bypass) shock absorbers are for custom fitments and are sold by length. These shock absorbers are completely owner rebuildable and revalvable. All service components are readily available and sold separately. Utilizing an M 9200 (Bypass) shock absorber is the easiest and most effective way to tune an off-road suspension for ultimate performance.
$523.95
Original: $1,497.00
-65%Bilstein M 9200 Bypass Shocks 33-250830—
$1,497.00
$523.95Bilstein M 9200 Bypass Shocks 33-250830
Part Numbers & Details
Package Contains 1 Shock
You'll be getting one shock absorber.Bilstein 90-Day Warranty
Manufacturer Warranty protects against defects and premature failure.Mounting Hardware Not Included
5/8" stainless uniball mounts with 1/2" step spacers.Adjustable Dampening
Available in 3 tube and 4 tube (triple and qudruple bypass) designs with 6 zones of dampening control and 4 external dampening adjusters for high speed and low speed compression and rebound.Product Highlights
Available in 60 and 70mm monotube designs with multiple stroke lengths from 8"-18" and include 60mm piggyback reservoirsSpecifications
| Part Number | Item | Quantity | Extended Length | Compressed Length | Travel | Top Mount | Bottom Mount | Reservoir | Color | Finish | Internal Design |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 33-250830 | Shock Absorber | 1 | 46.5" | 28.5" | 18" | EYELET | EYELET | Yes | Silver | Zinc Plated | Monotube |
Product Details
Designed for porfessional off road motorsports Bilstein M 9200 (Bypass) shock absorbers are position sensitive and adjustable, offering 6 zones of damping control and 4 external adjusters: 2 rebound and 2 compression. Utilizing an externally adjustable bypass shock absorber is the easiest and most effective way to tune your off-road suspension for ultimate performance. M 9200 (Bypass) shock absorbers are available in either 3-tube or 4-tube configurations and include a piggyback reservoir. M 9200 (Bypass) shock absorbers are for custom fitments and are sold by length. These shock absorbers are completely owner rebuildable and revalvable. All service components are readily available and sold separately. Utilizing an M 9200 (Bypass) shock absorber is the easiest and most effective way to tune an off-road suspension for ultimate performance.
