Dobinsons MRR(MRA) 3-Way Adjustable Shocks Front Pair for 1990-1997 Toyota Land Cruiser 80 4WD w/4" lift

Part Number	Lift/Lowered	Position	Item	Quantity
MRA45-A912	4.0" Lift	Front	Shock Absorber	1

Overview

3-way adjustable valving- adjust high speed, low speed compression and rebound

Fully Rebuild-able Design and re-valvable

Corrosion resistant (EDP Surface Protection)

Heavy duty single piece lower leg

High oil capacity

60mm 6063 Aluminium RemoteReservoir

Heavy Duty 3 Stage FKM HNBR Sealing System for the ultimate in reliability

Race inspired hi-flow CNC Billet alloy piston 60mm bore - for the ultimate in offroad handling

66mm/2.6" Bodied Series

Parker Braided High PressureHoses

5140 HV900 Hard Chrome Plated, Heat treated 22mm MicroPolished high strength Shock Shaft with a minimum tensile strength exceeding 700MPA

Carbon-Fibre/PTFE/Disulphide composite wear band for the ultimate in low-friction, low-˜wearperformance

Direct Bolt-On Design

High Quality O.E.M. Grade NaturalRubber Bushings

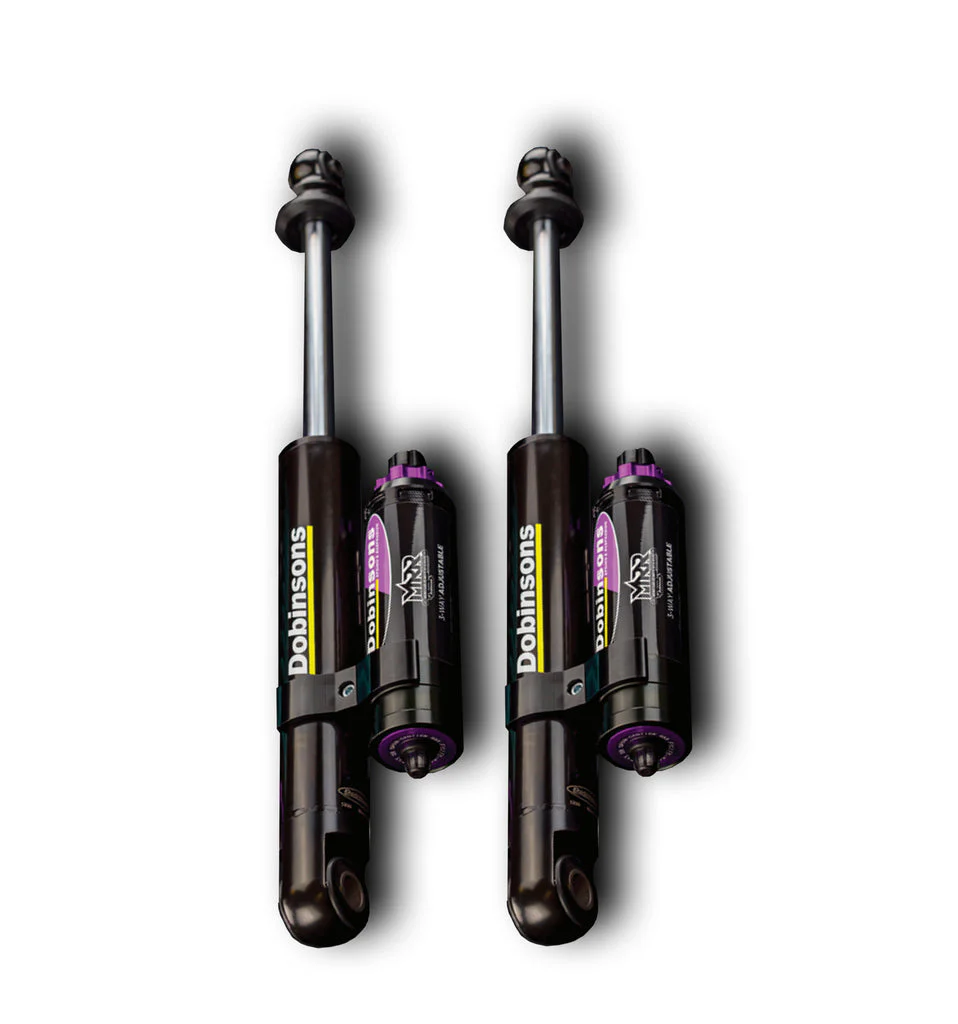

Picture is for reference only actual product may be different

Used with C45-270V Allows Coil to Stay Trapped at Full Extension.

Features

Built on the back of the race winning Monotube Remote Reservoir (MRR) shock absorbers, Dobinsons new range of MRR Adjustable shock absorbers combine the best in high performance race-bred Monotube technology, with an all new 3-way damping adjustment system to turn your 4x4 into the ultimate offroad machine. Each component of the MRR shock absorber has been refined and improved to offer a higher level of ride quality, vehicle control and shock absorber performance.

The new 6063 honed aluminium reservoir, revised light-weight floating piston, Carbon Fibre/PTFE/ Disulphide composite wear band, improved 3-stage sealing system and the ability to run lower gas pressure with the addition of the reservoir compression adjuster, have combined to provide massive reductions in shock absorber friction, resulting in an improved vehicle ride and damping performance. The revised sealing design now provides a 3 stage FKM-HNBR shaft seal system that, when combined with the reduced operating frictions, provides a vastly increased service life with reduced wear.The Micro-polished, hard chromed and heat treated shock shaft, revised CNC aluminium high flow race piston, and DOM Seamless tubing body provides the ultimate in performance and off-road durability. The 3-way adjustment design reduces the main piston working load, distributing heat more evenly between the main piston and the reservoir piston for reduced operating temperatures, and allows quick and easy damping changes for the ultimate in shock tunability in varying terrain and vehicle loads, to keep you controlled and comfortable. Enjoy the ride...
