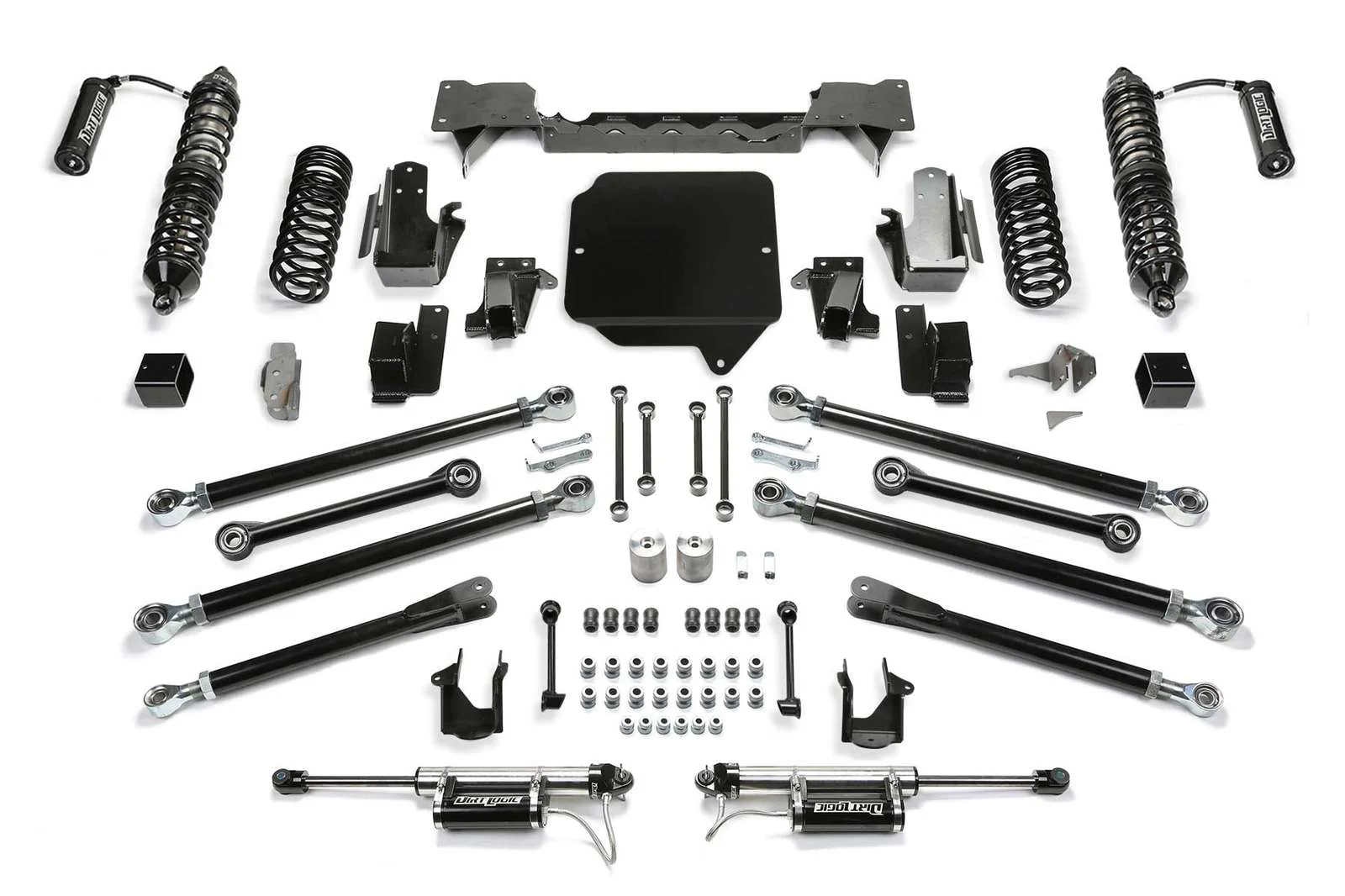

Fabtech 5" Crawler System w/Front Dirt Logic 2.5 Coilovers w/Reservoir & Rear Dirt Logic 2.25 Shocks w/Reservoir Kit for 2018-2024 Jeep Wrangler JL 4WD w/5" lift
Fabtech 5" Crawler System w/Front Dirt Logic 2.5 Coilovers w/Reservoir & Rear Dirt Logic 2.25 Shocks w/Reservoir Kit for 2018-2024 Jeep Wrangler JL 4WD w/5" lift
| Part Number | Item | Quantity |
|---|---|---|
| K4149DL | 5" Crawler System w/Front Dirt Logic 2.5 Coilovers w/Reservoir & Rear Dirt Logic 2.25 Shocks w/Reservoir | 1 |
Product Description
NOT APPROVED FOR 2021 APPLICATIONS
Fabtech's 3" Coilover Conversion for Jeep JL provides superior offroad suspension damping with a great highway ride compared to a separate coil spring and shock configuration. The stainless steel Dirt Logic 2.5 Coilover offers a noticeable increase in ride quality and high speed damping that Jeep owners will appreciate.This bolt on system retains the factory Jeep Wrangler coil spring bucket for an easy installation. Heavy duty axle brackets provide clearance for 9" wide wheels with 4.5" back spacing and 13.50" wide tires. This Jeep JL Coilover Conversion will provide 12.50" of wheel travel with valving that is specific to the Jeep for a balanced ride quality.
The Dirt Logic 2.5 Coilover is constructed with a stainless steel body for maximum corrosion resistance and longevity in severe conditions. The billet aluminum reservoir provides heat dissipation to help reduce shock fade for a more consistent ride. All aluminum parts are polished and anodized for a stunning appearance.
This Jeep JL Coilover Conversion has an optional Dirt Logic 2.25 Hydraulic Bump Stop kit for the ultimate in hard core compression damping.
Part Numbers
| Qty | Part # | Description |
|---|---|---|
| 1 | FTS24227 | Coilover Mount Kit |
| 1 | FTS24236 | Front Dirt Logic 2.5 Resi Coilovers |
Original: $7,118.22
-65%$7,118.22
$2,491.38Fabtech 5" Crawler System w/Front Dirt Logic 2.5 Coilovers w/Reservoir & Rear Dirt Logic 2.25 Shocks w/Reservoir Kit for 2018-2024 Jeep Wrangler JL 4WD w/5" lift
| Part Number | Item | Quantity |
|---|---|---|
| K4149DL | 5" Crawler System w/Front Dirt Logic 2.5 Coilovers w/Reservoir & Rear Dirt Logic 2.25 Shocks w/Reservoir | 1 |
Product Description
NOT APPROVED FOR 2021 APPLICATIONS
Fabtech's 3" Coilover Conversion for Jeep JL provides superior offroad suspension damping with a great highway ride compared to a separate coil spring and shock configuration. The stainless steel Dirt Logic 2.5 Coilover offers a noticeable increase in ride quality and high speed damping that Jeep owners will appreciate.This bolt on system retains the factory Jeep Wrangler coil spring bucket for an easy installation. Heavy duty axle brackets provide clearance for 9" wide wheels with 4.5" back spacing and 13.50" wide tires. This Jeep JL Coilover Conversion will provide 12.50" of wheel travel with valving that is specific to the Jeep for a balanced ride quality.
The Dirt Logic 2.5 Coilover is constructed with a stainless steel body for maximum corrosion resistance and longevity in severe conditions. The billet aluminum reservoir provides heat dissipation to help reduce shock fade for a more consistent ride. All aluminum parts are polished and anodized for a stunning appearance.
This Jeep JL Coilover Conversion has an optional Dirt Logic 2.25 Hydraulic Bump Stop kit for the ultimate in hard core compression damping.
Part Numbers
| Qty | Part # | Description |
|---|---|---|
| 1 | FTS24227 | Coilover Mount Kit |
| 1 | FTS24236 | Front Dirt Logic 2.5 Resi Coilovers |
