Fox 2.5 - 2" Lift System - 09-18 Ram 1500 4WD
About this Page
The base kit includes the front coilovers and rear shocks. Any changes to the default selections in the drop down menus may result in a change of price.
Parts have not been tested on air-ride equipped vehicles, consult with our staff prior to your purchase if you have air ride or electronic suspension.
Custom Build
This Lift System is built to your personal vehicle specs and will be pieced together based on your parts selection.
Not everything in the pictures are included, only the items you will select for your system will be included.
Estimated time to deliver will vary from 6-10 weeks based on current inventory, and a Shock specialist will contact you immediately after your purchase to verify details. You are welcome to contact us prior to purchase to inquire about product availability.
Fox 2.5 Lift System

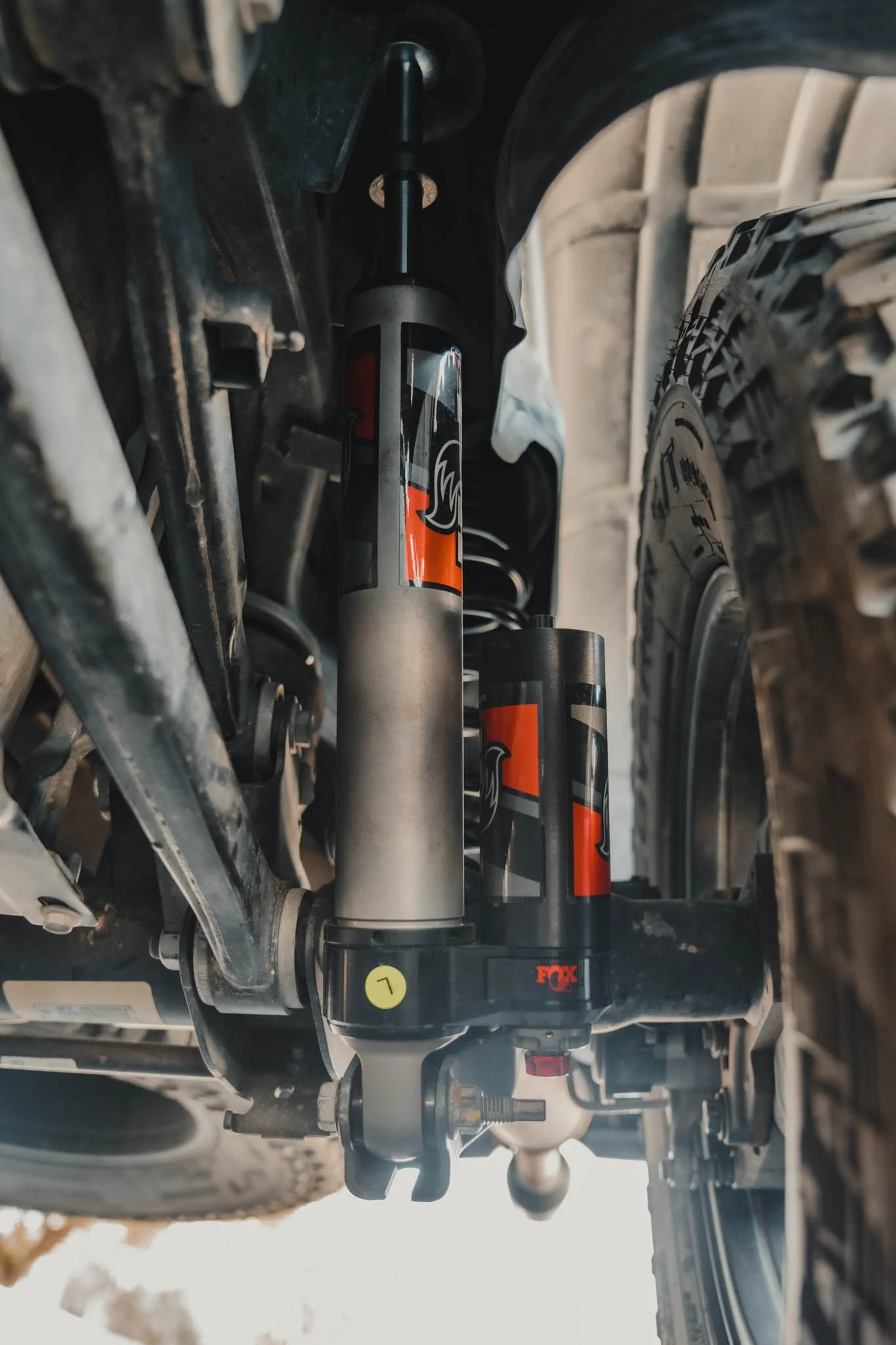

The Factory Race Series 2.5 DSC coilovers and shocks allow for that go-fast attitude on the dirt or the pavement. Improving handling and comfort in all terrains, these shocks drastically improve ride quality, and with the adjustable DSC option you can fine tune your ride even further.
Front Coilover Options
The 4-6" front options listed here are for existing lift systems that utilize a dropdown crossmember bracket to achieve the total lift height. The Fox coilovers for 4-6" here are full length coilover towers to remove the necessity of a strut spacer (on top of a factory height strut). Any questions, please contact us for clarification.
| Height |
Engine | Notes | Springs | MPN |
| +0-2" | Diesel | Exc. Air Ride | 14" x 600lb | 883-02-137 |
| +0-2" | Diesel | Adjustable, Exc. Air Ride | 14" x 600lb | 883-06-137 |
| +0-2" | Gas | Adjustable, Exc. Air Ride | 16" x 550lb | 883-06-080 |
| +4-6" | Gas | Exc. Air Ride | 16" x 600lb | 883-02-073 |
| +4-6" | Gas | Adjustable, Exc. Air Ride | 16" x 600lb | 883-06-073 |
Front Spring Options
If you would like different spring options to be swapped out on your parts, these are the available options, and will require additional time for delivery.
- Fox Standard per chosen part number.

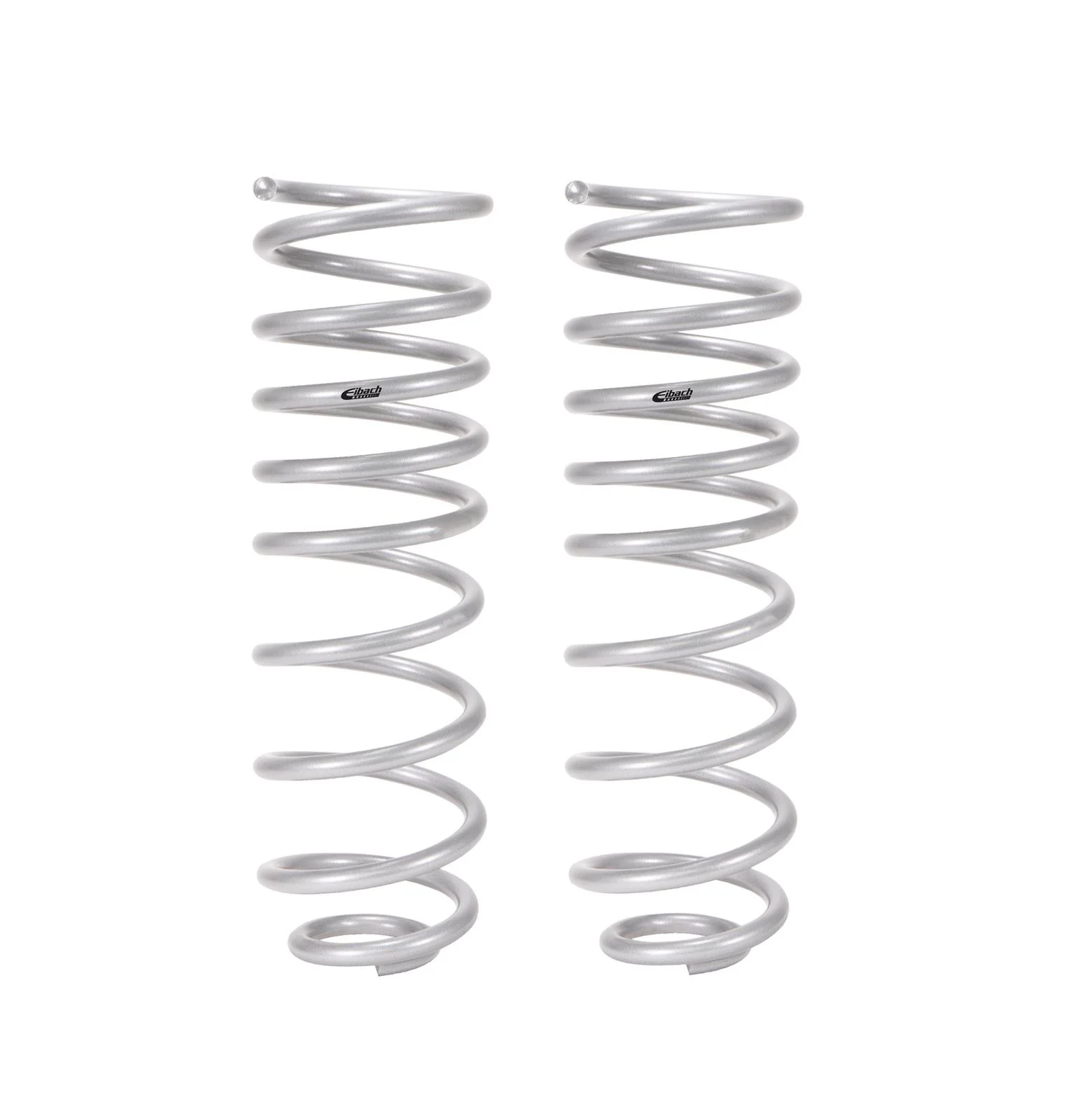

- Eibach 500lb x 16" Springs - 1600.300.0500S
- Eibach 550lb x 16" SpringsĀ - 1600.300.0550S
- Eibach 600lb x 16" SpringsĀ - 1600.300.0600S
- Eibach 650lb x 16" SpringsĀ - 1600.300.0650S

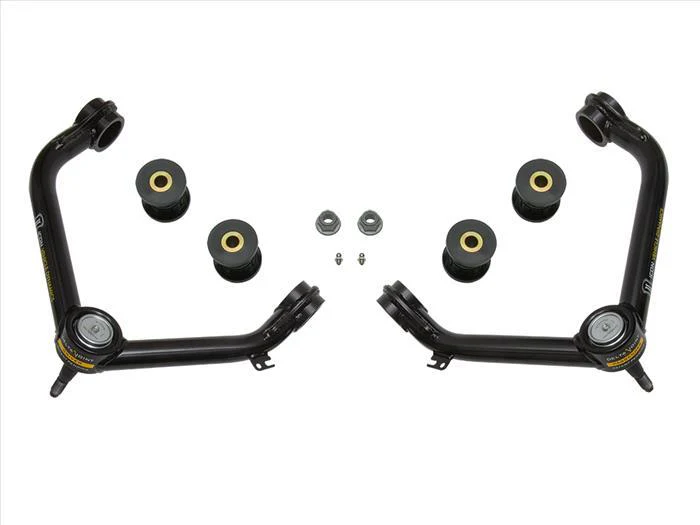

Upper Control Arms
All available arms allow for more suspension articulation compared to stock arms on a lifted vehicle, and is required for alignment, which is important when lifting the vehicle 3-3.5".
- Icon Vehicle Dynamics Tubular Delta Joint -$892.45 -218550DJ
- Camburg 1.25 Performance Uniball -$849.95 -Ā 810001
Rear Shocks
The 2.5 series is included with this set of shocks. If you require shocks for your 4-6" lift systems, these shocks below are available. You will need to contact our sales team to setup a custom invoice.
- 0-2" Factory Race Series 2.5 Reservoir Shocks (Pair) - Adjustable -Ā 883-26-029
- 4-6" Factory Race Series 2.0 Reservoir Shocks (Pair) - Non-Adj - 980-24-034
- 4-6" Factory Race Series 2.0 Reservoir Shocks, (Pair) - Adjustable - 980-26-034
Rear Lift Options
- Icon Vehicle Dynamics Rear Dual Rate +1.5" Lift Springs -$293.95 -Ā 212150
- Eibach Rear Lift Springs +1.0" -$179.00 -Ā E30-27-011-02-02

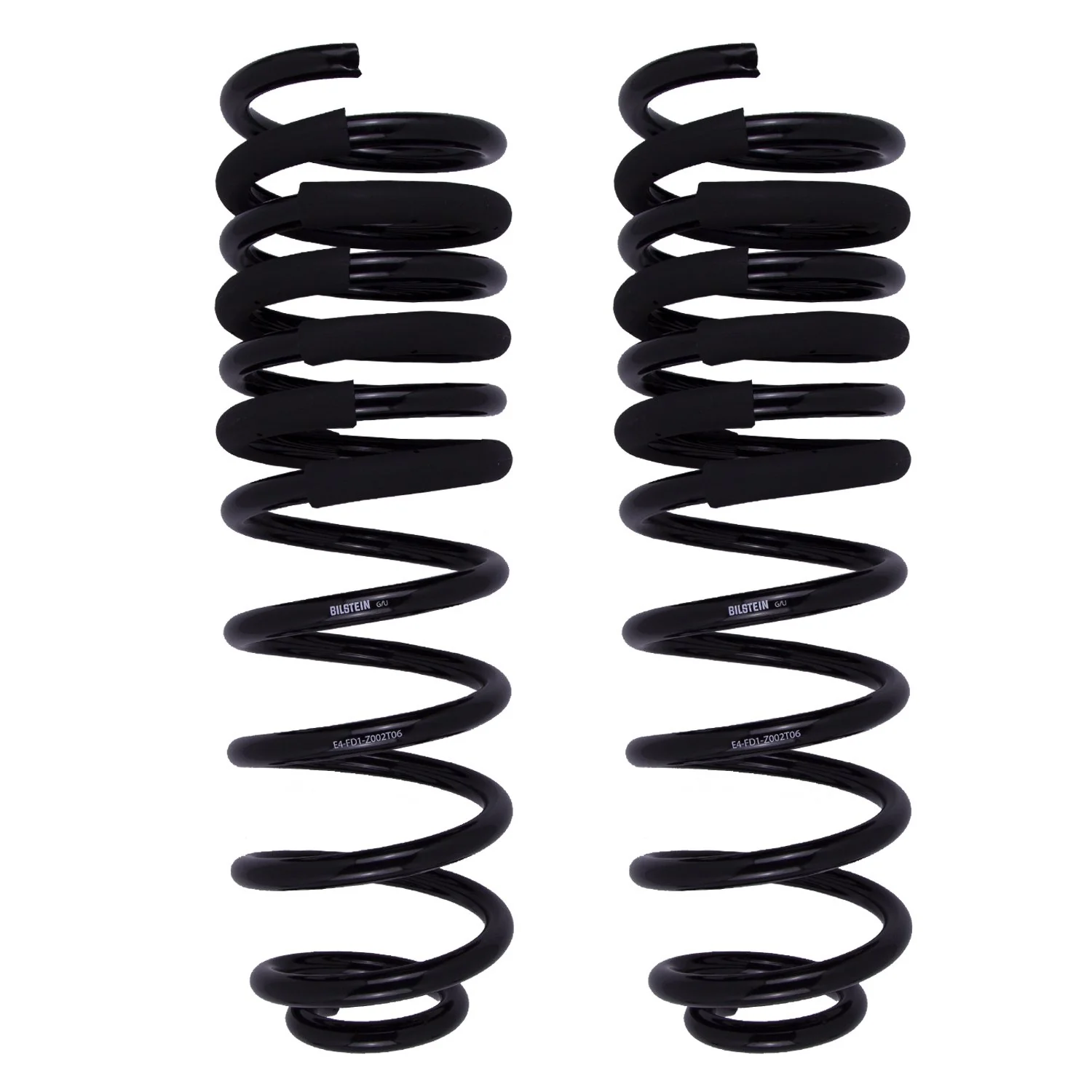

- Bilstein Rear Lift Springs +1.0" -$304.00 -Ā 53-297839
Helper Spring Options
Timbren Helper springs replaces the factory jounce stop on the frame with progressive rate rubber springs, which adjust automatically to load inputs. These kit do not increase GWVR.
