Package Contains 2 Shocks
Rear pair of two shock absorbers.🚚 Free Worldwide Shipping on All Orders!Shop Now

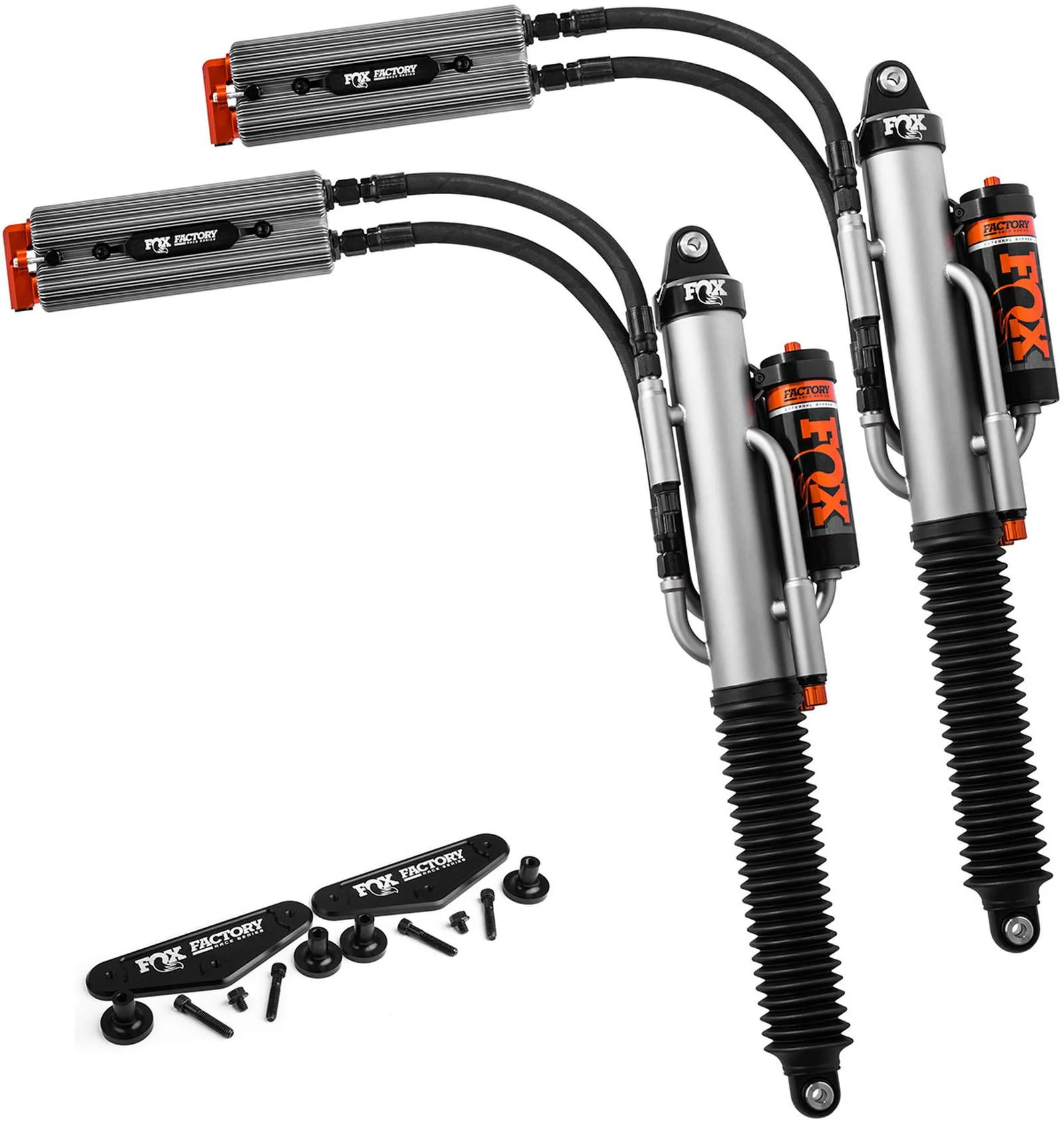

Fox 3.0 Factory Bypass Reservoir QAB Adjuster Shocks Rear Pair for 2017-2018 Ford F150
Part Numbers & Details
Fox One Year Warranty
Fox's limited one year warranty protects against defects and premature failure.Fits vehicles at factory height or with up to 1" front lift
For vehicles with no suspension modifications or up to 1" front lift systems.Factory Hardware for Installation
All necessary washers, bushings, and nuts included. Factory shock mounting bolts are reused for installation.Specifications
| Part Number | Lift/Lowered | Position | Item | Quantity | Extended Length | Compressed Length | Travel | Top Mount | Bottom Mount | Reservoir | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 883-09-141 | Factory | Rear | Shock Absorber | 1 | 31.15" | 18.88" | 12.27" | EYELET | EYELET | Piggyback | Aluminum |
Product Details
3.0 Factory Race Series Bypass, position-sensitive shocks maximize the entire wheel travel, increases oil capacity, and adds 60% more damping area over the stock FOX SVT shocks. The 3.0 Factory Series Bypass shocks were developed with three independently owner tunable bypass zones for complete ride control regardless of terrain conditions. They allow for a plush predictable ride over normal off-road driving conditions and also have the ability to ramp up damping force for extreme use. These heavy-duty, steel-bodied shocks are loaded with anodized billet aluminum components and race-bred internal valving. They are designed to bolt right on to your factory mounts. Large 2.5 inch remote reservoirs increasing the shocks cooling capabilities. The 3.0 Factory Race Series Coilover Internal Bypass shocks utilizing all of the same components from our race winning Trophy Truck shocks with steel shock shafts, PTFE-lined spherical bearings, proprietary racing oil and high-temp Viton seals. Pair these shocks with aftermarket leaf springs and bump stop kits to unleash the SVT Raptors true off-road capabilities.
$3,879.95
Fox 3.0 Factory Bypass Reservoir QAB Adjuster Shocks Rear Pair for 2017-2018 Ford F150—
$3,879.95
Fox 3.0 Factory Bypass Reservoir QAB Adjuster Shocks Rear Pair for 2017-2018 Ford F150
Part Numbers & Details
Package Contains 2 Shocks
Rear pair of two shock absorbers.Fox One Year Warranty
Fox's limited one year warranty protects against defects and premature failure.Fits vehicles at factory height or with up to 1" front lift
For vehicles with no suspension modifications or up to 1" front lift systems.Factory Hardware for Installation
All necessary washers, bushings, and nuts included. Factory shock mounting bolts are reused for installation.Specifications
| Part Number | Lift/Lowered | Position | Item | Quantity | Extended Length | Compressed Length | Travel | Top Mount | Bottom Mount | Reservoir | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 883-09-141 | Factory | Rear | Shock Absorber | 1 | 31.15" | 18.88" | 12.27" | EYELET | EYELET | Piggyback | Aluminum |
Product Details
3.0 Factory Race Series Bypass, position-sensitive shocks maximize the entire wheel travel, increases oil capacity, and adds 60% more damping area over the stock FOX SVT shocks. The 3.0 Factory Series Bypass shocks were developed with three independently owner tunable bypass zones for complete ride control regardless of terrain conditions. They allow for a plush predictable ride over normal off-road driving conditions and also have the ability to ramp up damping force for extreme use. These heavy-duty, steel-bodied shocks are loaded with anodized billet aluminum components and race-bred internal valving. They are designed to bolt right on to your factory mounts. Large 2.5 inch remote reservoirs increasing the shocks cooling capabilities. The 3.0 Factory Race Series Coilover Internal Bypass shocks utilizing all of the same components from our race winning Trophy Truck shocks with steel shock shafts, PTFE-lined spherical bearings, proprietary racing oil and high-temp Viton seals. Pair these shocks with aftermarket leaf springs and bump stop kits to unleash the SVT Raptors true off-road capabilities.
