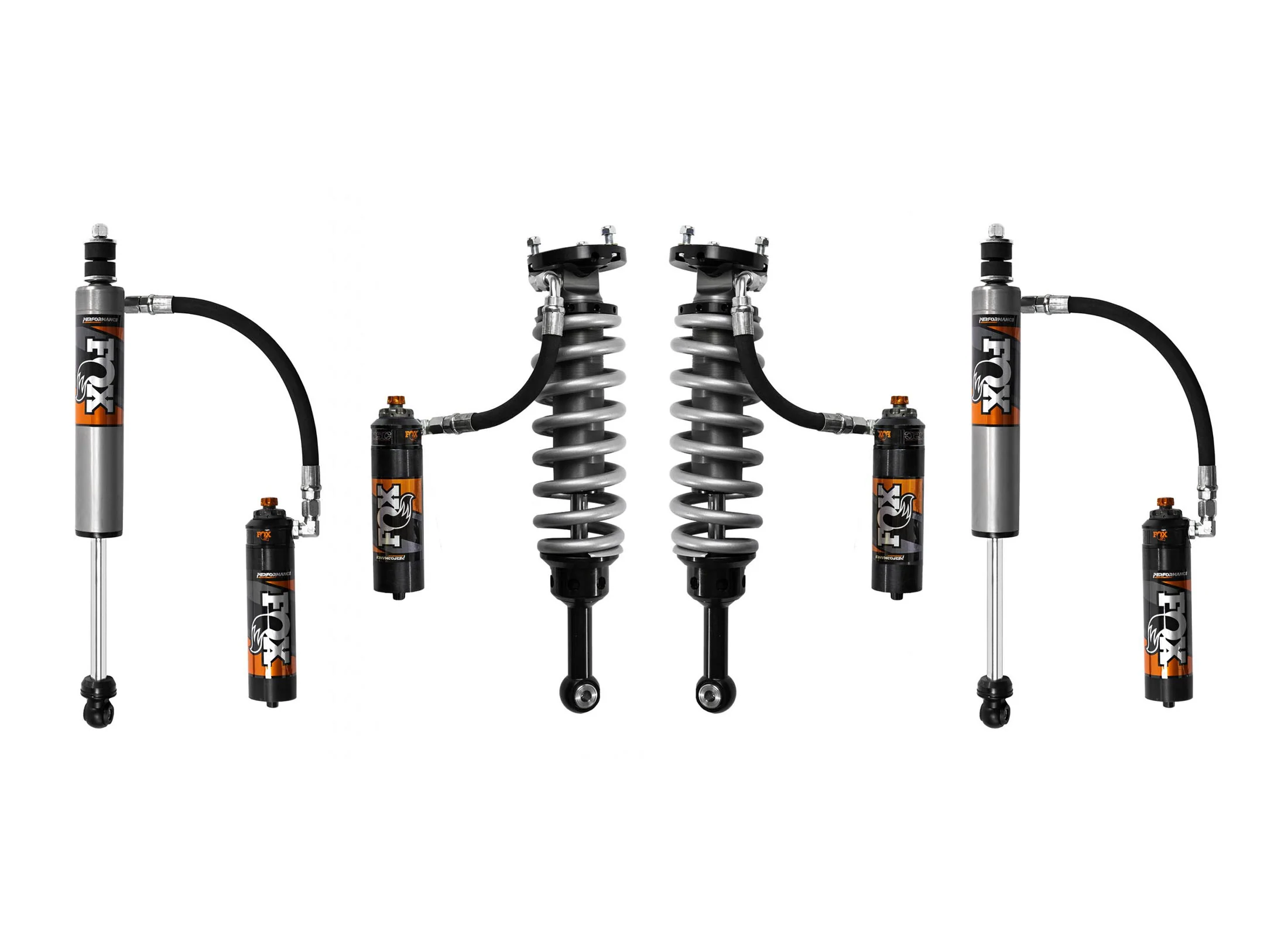

Fox Performance Elite 2.5 Lift System - 2005-2023 Toyota Tacoma

Part Number	Item	Quantity	Lift
883-06-177	Front Coilover	Pair	1"
883-06-178	Front Coilover	Pair	1-2"
883-26-112	Rear Shocks	Pair	0-1.5"
883-26-113	Rear Shocks	Pair	2-3"



2005-2015 Lift Height - 2-3" Lift

2016-2023 Lift Height - 0-2" Lift

The base price of this kit includes the front coilovers and rear shocks, optional components will change the price of this kit, which will be reflected above the Add-to-Cart button.

Configure your setup through the dropdown menus, the above table outlines the part numbers and their respective details for the shocks and coilovers. The tables below will outline the upper control arm, rear lift, and other optional components to build out this kit.

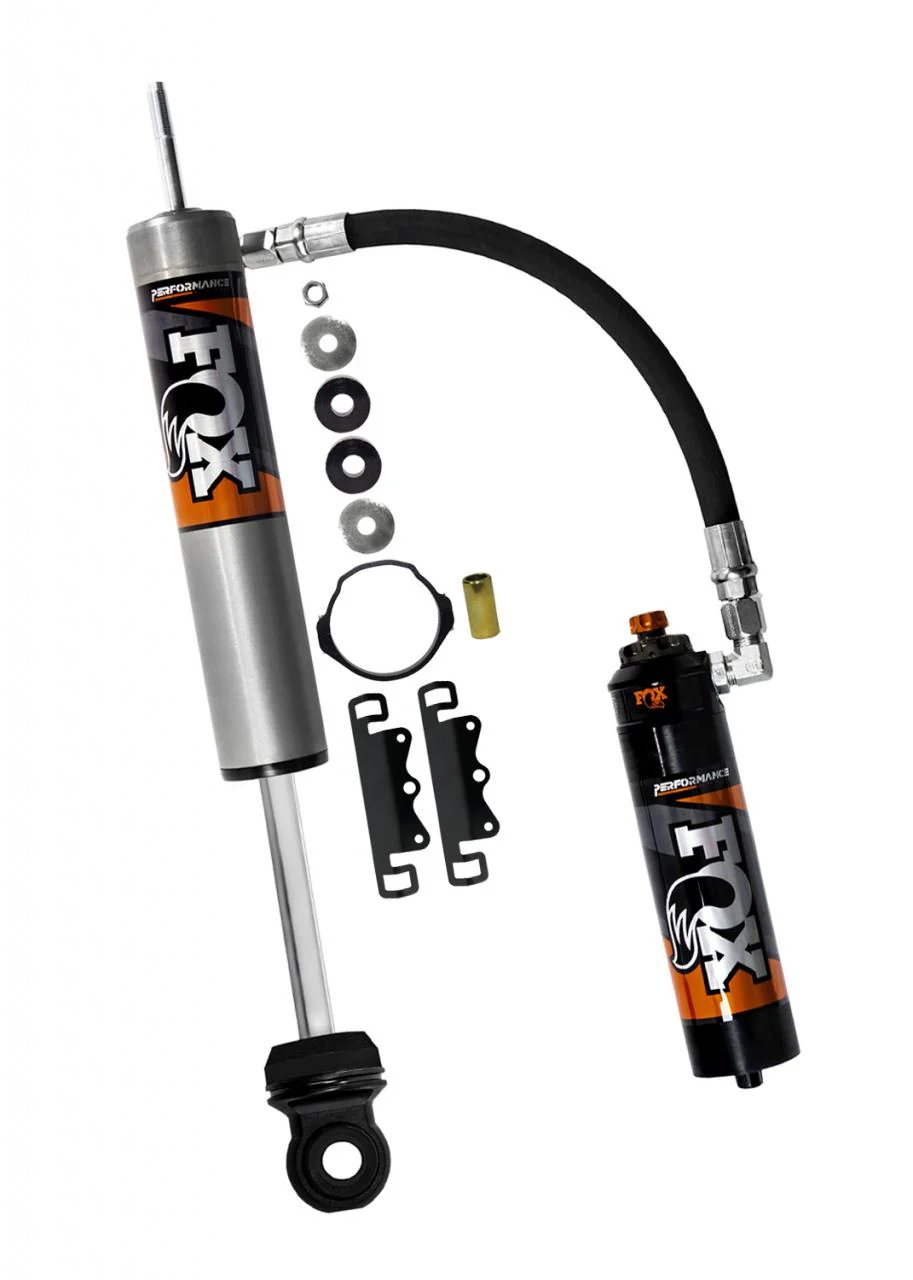

FOX's Performance Elite series shocks and coilovers are aluminum bodied, with a type 3 anodization that further prevents corrosion and wear against salt and harsh environments. The DSC function allows fine tuning of daily driven comfort and handling, while also allowing further optimization of high speed offroad use through the high speed compression adjuster.

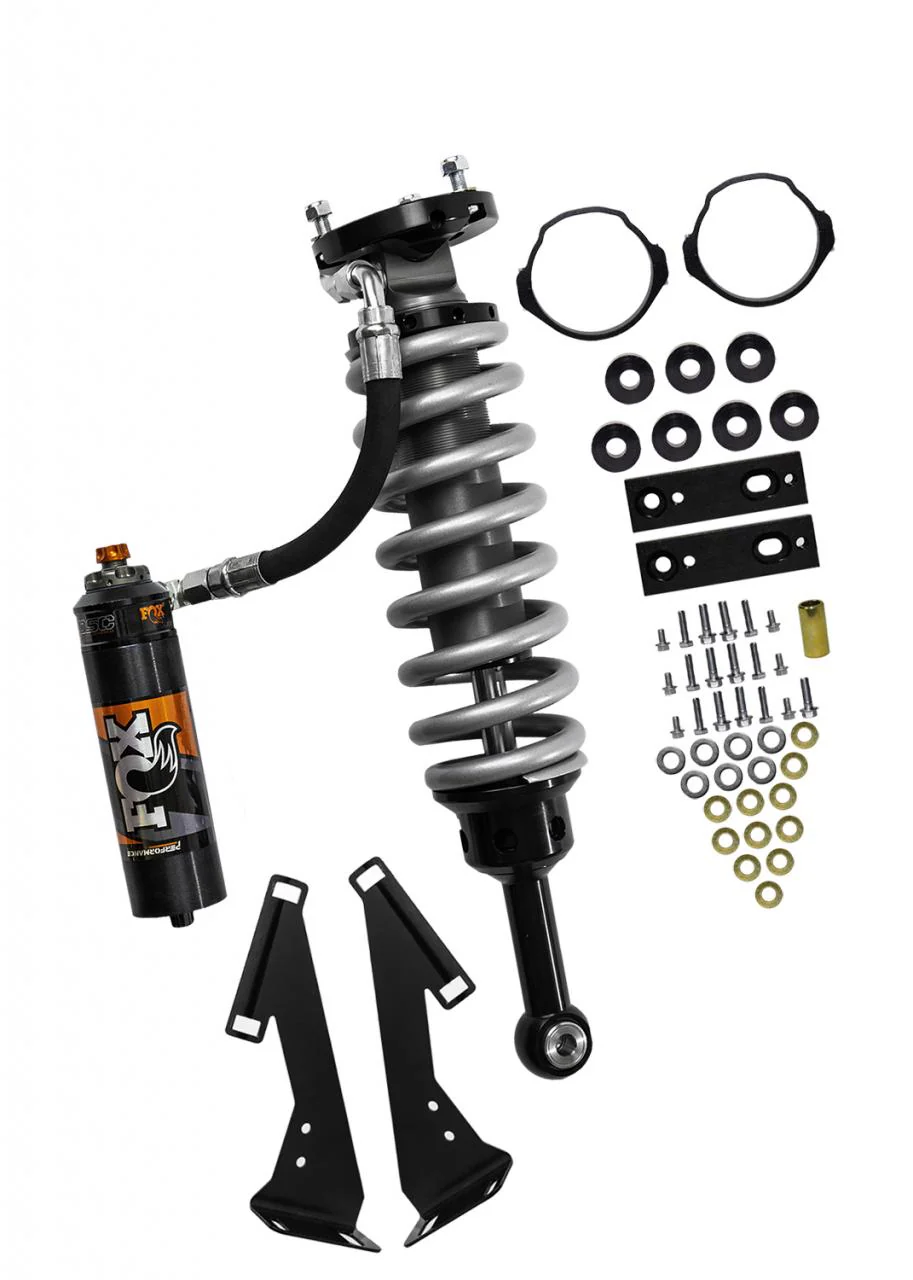

Front Coilover Springs

Fox includes a 600lb x 3in ID x 14in spring on the Performance Elite Coilover. The old factory series used a 600x3inx13in spring, so a minor but imperceptible difference. A 650lb spring or 700lb spring is available as a heavy duty upgrade, whether to accommodate more front end weight, or top-mounted weight. A higher rated spring will ride firmer when unloaded, but can also be used to optimize high-speed offroad use since a heavier spring rate adds to compression-damping force.

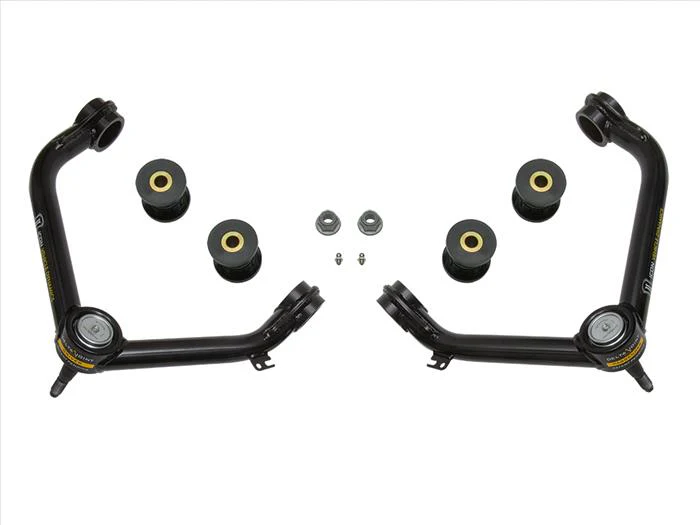

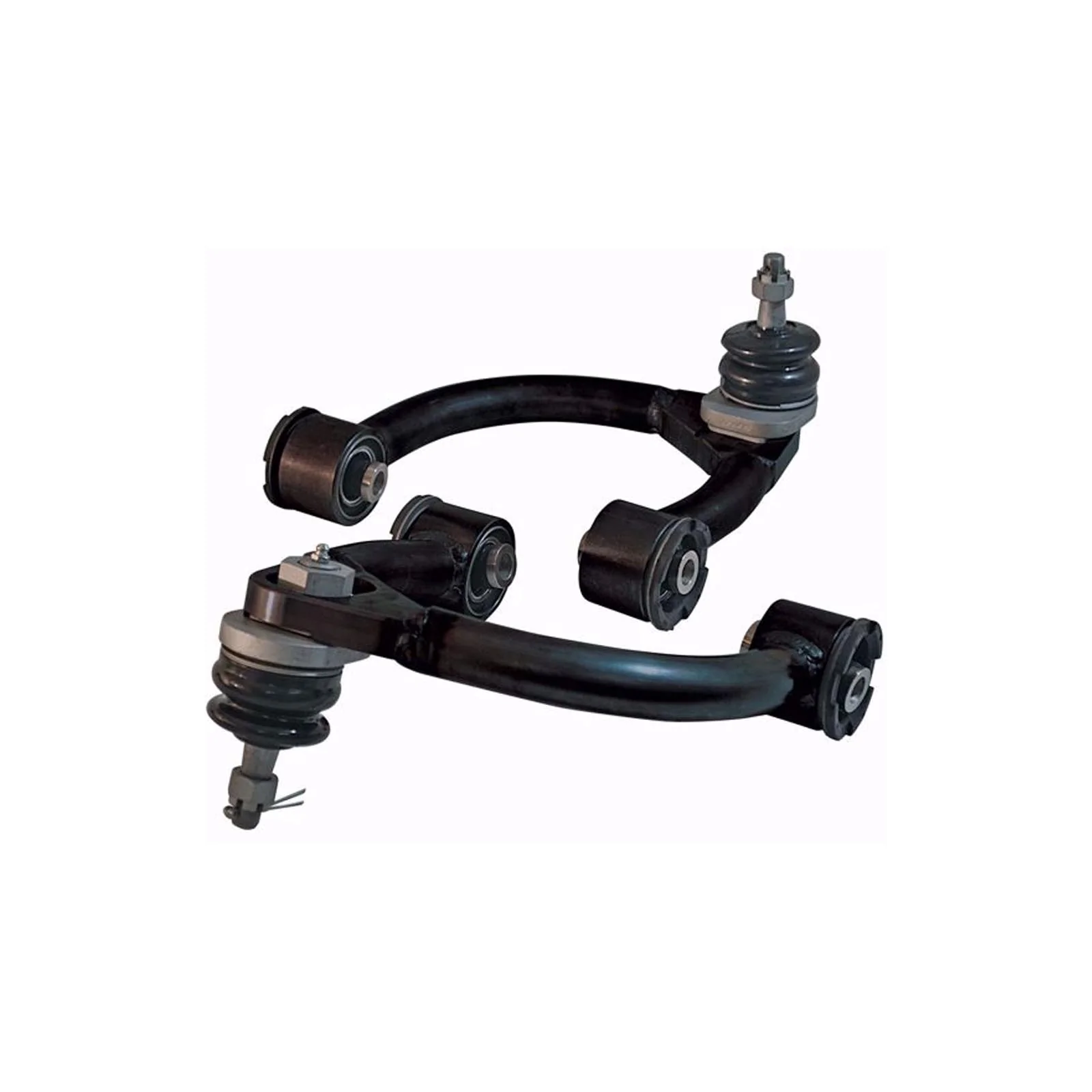

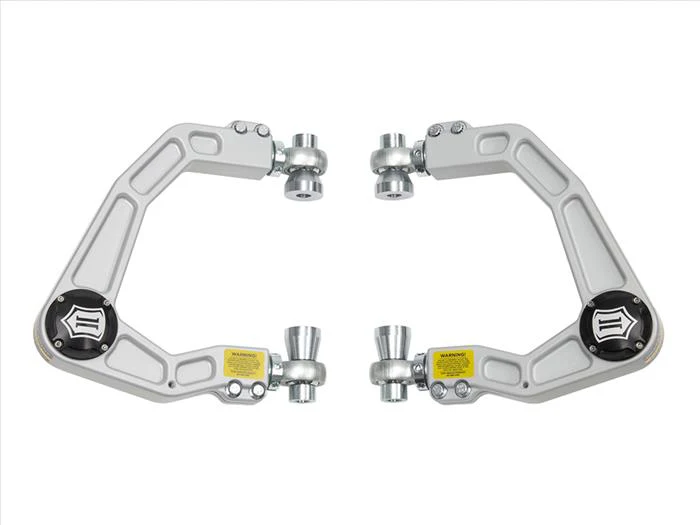

Upper Control Arm Options

All available arms allow for more suspension articulation compared to stock arms on a lifted vehicle, and easier alignment, which is important when lifting the vehicle 3-3.5".

• SPC Light Racing - 25470
• Icon Vehicle Dynamics Tubular Delta Joint - 58450

• Icon Vehicle Dynamics Billet Aluminum Delta Joint - 58550DJ
• Camburg Uniball - 310036
• Camburg Kinetik - 310103
• Camburg X-Joint - 310078
• Old Man Emu - UCA0005
• Bilstein B8 UCA - 51-304683

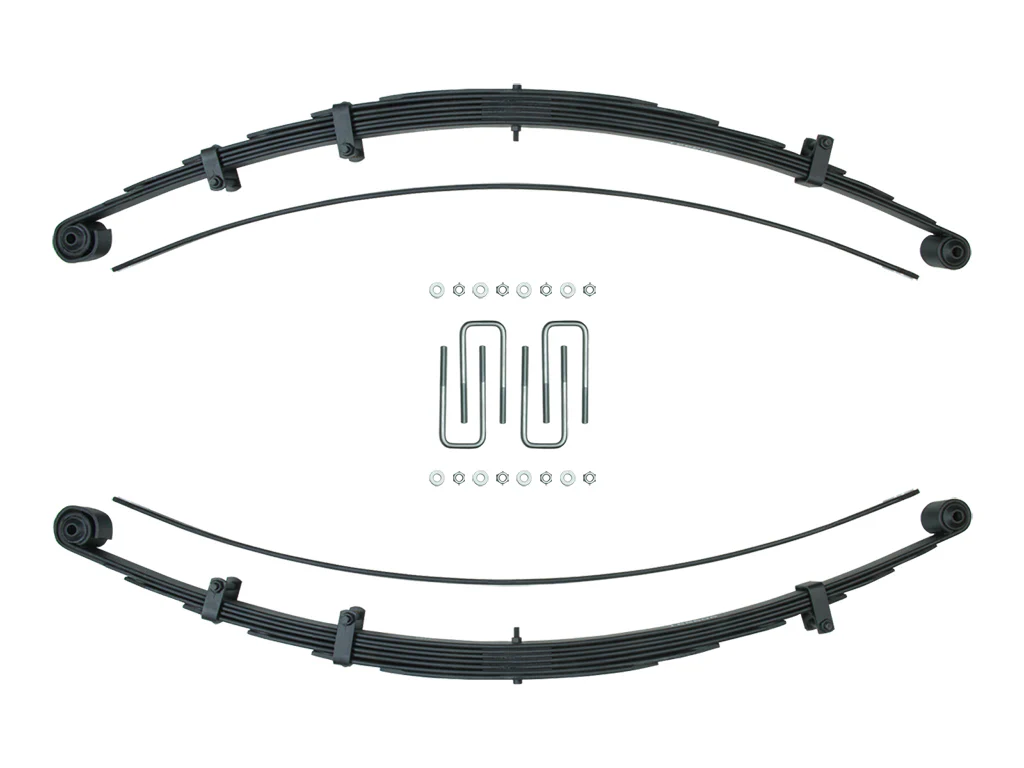

Rear Lift Options

There are many options to lift the rear of your Tacoma, with their own pros and cons. Traditionally we recommend a progressive add-a-leaf setup that both improves handling and height requirements with additional weight, without negatively affecting ride quality too much. Old Man Emu leaf packs come with the required Fitting Kit (FK29), Ubolts (OMEU53B), and Rear Spring Bushing Kit (OMESB108).

• Eibach Pro-Truck +1.5" Billet Aluminum Lift Block - LB81-82-007-01-02
• Icon Vehicle Dynamics 1.5" Progressive Add-a-Leaf - 51100
• Icon Vehicle Dynamics 2-.5" RXT Leaf System - 51101
• Old Man Emu Dakar 2-2.5" Leaf Pack (0lbs-GVW) - EL111R
• Old Man Emu Dakar 2-2.5" HD Leaf Pack (Constant 500-700lb load) - EL112R
• Deaver F85 1.5" - 3 Leaf Overload Replacement
• Deaver J66 1" Lift - 10 spring Progressive Leaf Pack
• Deaver U402 2" Lift Expedition Series - Stage 1 0-350lb
• Deaver U402 2" Lift Expedition Series - Stage 2 400-600lb

• Deaver U402 2" Lift Expedition Series - Stage 3 650-1000lb

Rear Bumpstops / Spring Helpers

These options provide additional help to the rear suspension, whether through smoother bump compliance from a loaded rear end (SumoSprings), or through smoother axle performance while offroad and going through rough terrain (Timbren).

• SumoSprings SSR-612-40 - 1400lb
• SumoSprings SSR-612-47 - 1800lb
• SumoSprings SSR-624-40 - 1400lb
• SumoSprings SSR-624-47 - 1800lb
• SumoSprings SSR-627-40 - 1400lb
• SumoSprings SSR-627-47 - 1800lb
• Timbren ABSTTUBPACK
• Timbren ABSTTPACK
• Timbren ABSTRFK
• Timbren ABSTOF
• Timbren ABSOSR
