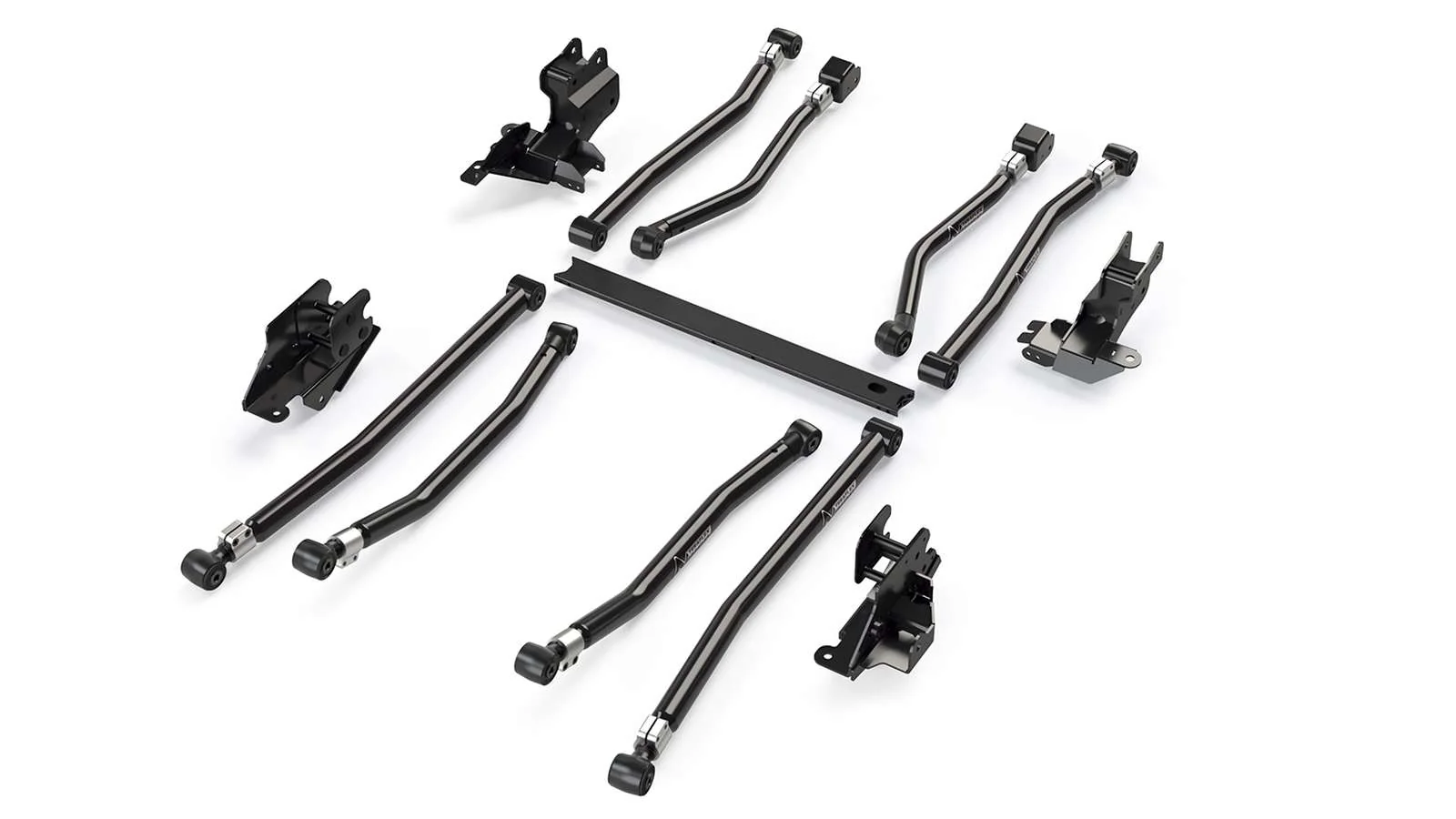

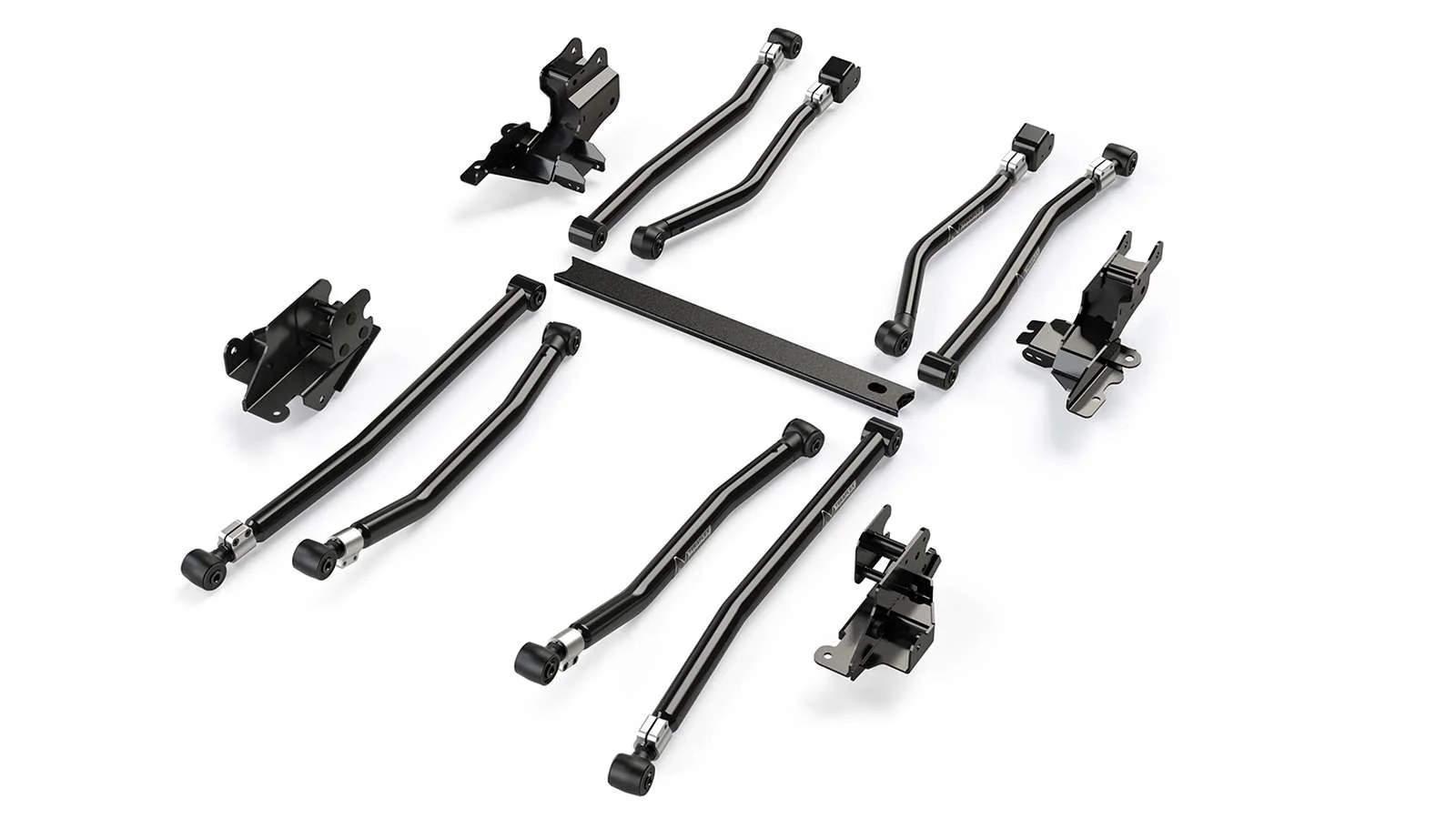

Teraflex Alpine Adjustable 8-Arm Long Control Arm and Bracket Kit for 2018-2024 Jeep Wrangler JL 4WD w/3-6" lift
Teraflex Alpine Adjustable 8-Arm Long Control Arm and Bracket Kit for 2018-2024 Jeep Wrangler JL 4WD w/3-6" lift
Part Numbers & Details
Specifications
| Part Number Options | Item | Quantity | Number Doors |
|---|---|---|---|
| 1316012 | Alpine Adjustable 8-Arm Long Control Arm and Bracket Kit | 1 | 2 Door |
| 1316010 | Alpine Adjustable 8-Arm Long Control Arm and Bracket Kit | 1 | 4 Door |
Features & Highlights:
- Adjustable Alpine Long Control Arms & Brackets balance front caster angle and pinion angles as well as optimize rear pinion angle and tune anti-squat geometry for proper suspension alignment on 3–6" lift kits
- Alpine Long Control Arms are constructed from durable 42mm x 4mm (front upper) or 50mm x 5mm (front lower, rear upper, rear lower) wall DOM tube for maximum strength
- On higher lifts, Alpine Long Arm Brackets reposition frame-end control arm mounting points to restore near factory orientation to reduce bushing stress during droop and shock load transferred through the Alpine Long Control Arms
- Bolt-on Alpine Long Arm Brackets are gusseted and reinforced for superior strength w/ reduce NVH compared to other long arm kits JL Alpine Control Arms (all):
- Re-centers axles in the wheel well for proper suspension movement. Can also be used to increase wheelbase
- Full range of movement will not restrict articulation or flex off-road
- High-quality, dependable, maintenance-free, factory-style bushings provide excellent NVH (noise, vibration, and harshness) damping and ride quality
- Zero maintenance forged threaded joints for smooth quiet flex
- Premium black e-dipped coating on tube and forged rod end housing provides superior durability and corrosion resistance
- Anodized 6061-T6 aluminum clamp collar to secure rod end after length adjustment
- Install and drive simple bolt-on installation – no welding required
- TeraFlex Lifetime Warranty against defects
More Information:
TeraFlex JL: Alpine Long Control Arms and Alpine Long Arm Brackets provide complete alignment adjustability and dependability for maximum performance on JL Wrangler/Unlimited models with 3–6" lifts. Can be added to any existing suspension lift. High-quality dependable maintenance-free factory-style bushings provide excellent NVH damping and ride quality. CAD-engineered Alpine Long Arm Brackets are designed for maximum strength. By streamlining the frame-end mounting points we were able to incorporate both upper and lower mounts in each bracket thus simplifying installation while maintaining a factory appearance.
Fitment Notes from the Manufacturer:
- JL Wrangler (2-door)
- 3-6" LiftControl Arm Specs:JL: Alpine Long Control Arm Kit – Front Upper (# 1316520):
- Tube Diameter & Wall = 42mm x 4mm
- Factory Length = 20.185"
- Min. Length = 27-3/8"
- Max. Length = 28-7/8
- Axle End = 7/16" (12mm) Bolt
- Frame End = 9/16" (14mm) BoltJL: Alpine Long Control Arm Kit – Front Lower (# 1316500):
- Tube Diameter & Wall = 50mm x 5mm
- Factory Length = 24"
- Min. Length = 33-3/4"
- Max. Length = 35-1/4"
- Both Ends = 9/16" (14mm) BoltJL: Alpine Long Control Arm Kit – Rear Upper (# 1316560):
- Tube Diameter & Wall = 50mm x 5mm
- Factory Length = 17.425"
- Min. Length = 20"
- Max. Length = 21-1/2"
- Both Ends = 9/16" (14mm) BoltJL: Alpine Long Control Arm Kit – Rear Lower (# 1316540):
- Tube Diameter & Wall = 50mm x 5mm
- Factory Length = 19-3/4"
- Min. Length = 35-3/4"
- Max. Length = 37-1/4"
- Both Ends = 9/16" (14mm) Bolt
