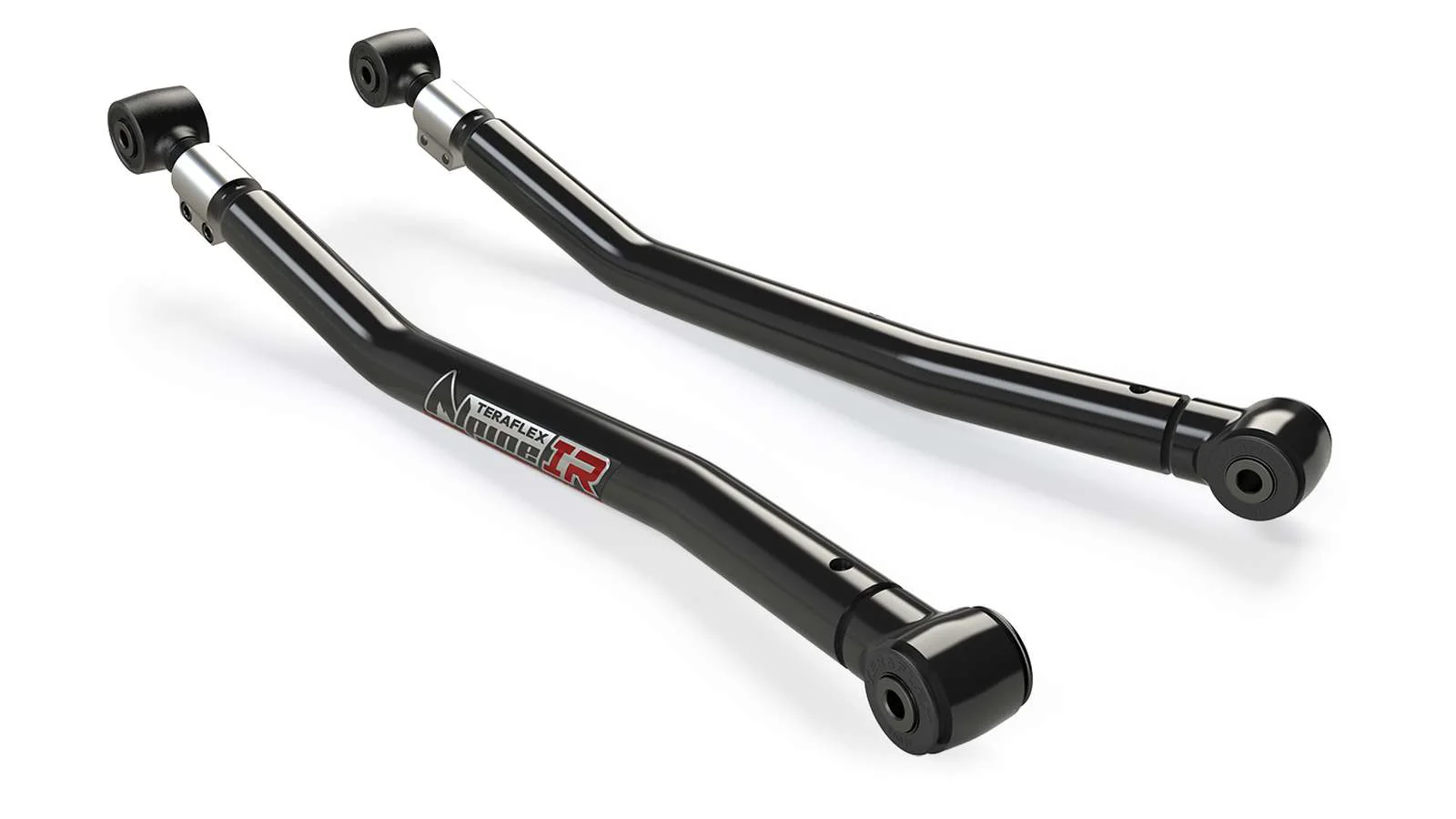

Teraflex Alpine IR Adjustable Rear Upper Control Arm Kit for 2018-2024 Jeep Wrangler JL 4WD w/3-6" lift
Teraflex Alpine IR Adjustable Rear Upper Control Arm Kit for 2018-2024 Jeep Wrangler JL 4WD w/3-6" lift
| Part Number | Item | Quantity |
|---|---|---|
| 1310560 | Alpine IR Adjustable Rear Upper Control Arm Kit | 1 |
Features & Highlights:
- Adjustable Alpine IR Long Control Arms & Brackets balance front caster angle and pinion angles as well as optimize rear pinion angle and tune anti-squat geometry for proper suspension alignment on 3–6" lift kits
- Alpine IR Long Control Arms are constructed from durable 42mm x 4mm (front upper) or 50mm x 5mm (front lower, rear upper, rear lower) wall DOM tube for maximum strength
- On higher lifts, Alpine Long Arm Brackets reposition frame-end control arm mounting points to restore near factory orientation to reduce bushing stress during droop and shock load transferred through the Alpine IR Long Control Arms
- Bolt-on Alpine Long Arm Brackets are gusseted and reinforced for superior strength w/ reduce NVH compared to other long arm kits JL Alpine IR Control Arms (all):
- Re-centers axles in the wheel well for proper suspension movement. Can also be used to increase wheelbase
- Full range of movement will not restrict articulation or flex off-road
- Innovative IR Bushings provide unrestricted rotation and flex as well as excellent NVH damping
- Maintenance-free IR Bushings improve on- and off-road ride quality and performance
- Zero maintenance forged threaded joints for smooth quiet flex
- Premium black e-dipped coating on tube and forged rod end housing provides superior durability and
- corrosion resistance
- Anodized 6061-T6 aluminum clamp collar to secure rod end after length adjustment
- Install and drive simple bolt-on installation – no welding required
- TeraFlex Lifetime Warranty against defects
More Information:
TeraFlex JL: Alpine IR Long Control Arms and Alpine Long Arm Brackets (NOT INCLUDED) provide complete alignment adjustability and dependability for maximum performance on JL Wrangler/Unlimited models with 3–6" lifts. Can be added to any existing suspension lift. Our innovative IR Bushings provide unrestricted rotation and flex as well as excellent NVH damping. These maintenance-free bushings improve on- and off-road ride quality and performance. Must be used with Alpine Long Arm Bracket Kit (JL 2-Door: 1958002 or JL 4-Door: # 1958000) – NOT INCLUDED.
Fitment Notes from the Manufacturer:
- JL Wrangler (2-door)
- JL Wrangler Unlimited (4-door)
- 3-6" LiftControl Arm Specs:
- Tube Diameter & Wall = 50mm x 5mm
- Factory Length = 17.425"
- Min. Length = 20"
- Max. Length = 21-1/2"
- Both Ends = 9/16" (14mm) Bolt
