Package Contains 1 Shock
You'll be getting one shock absorber.🚚 Free Worldwide Shipping on All Orders!Shop Now
HomeStore

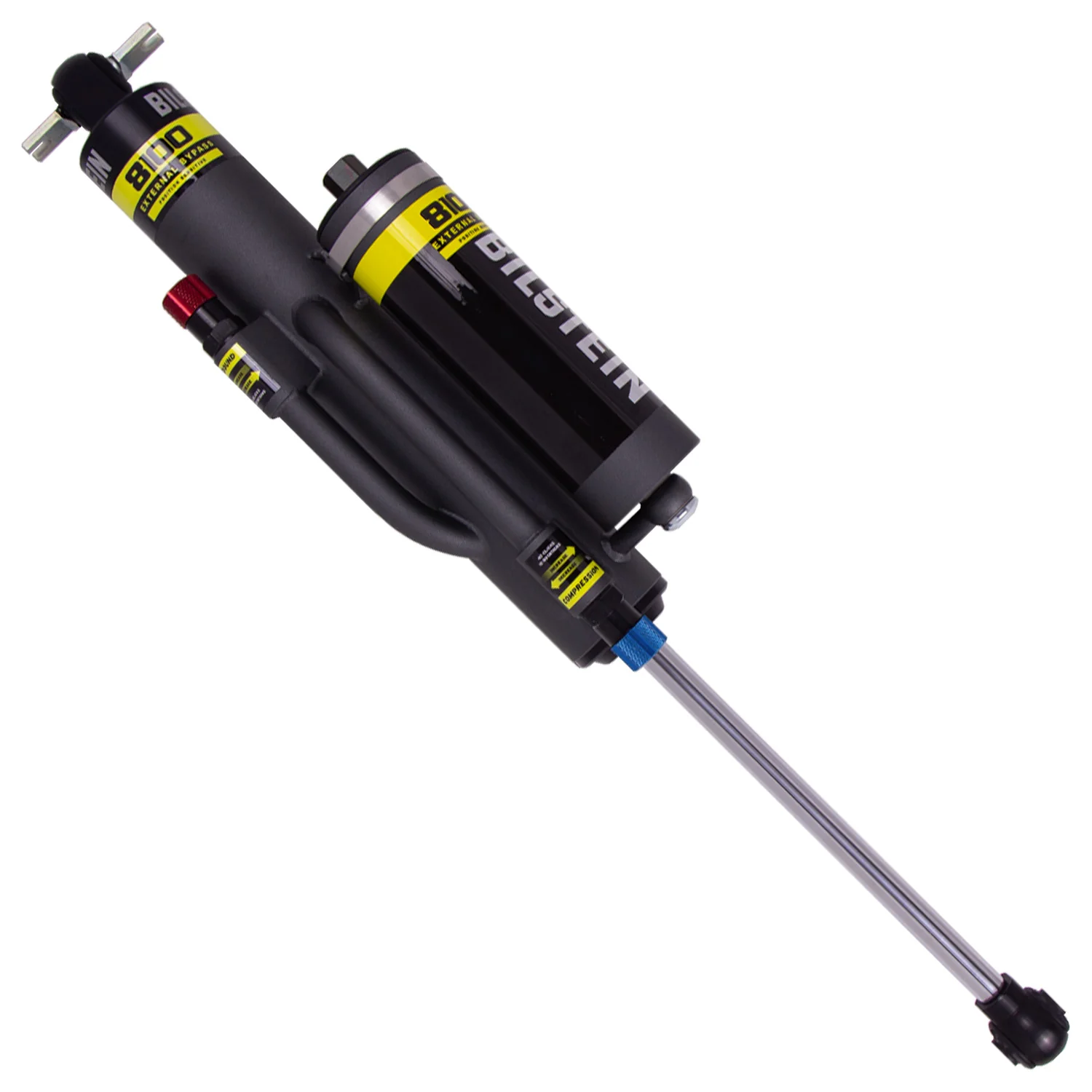

Bilstein B8 8100 Bypass Reservoir Shocks for 2007-2018 Jeep Wrangler JK w/3.5-5" lift Rear Right
Bilstein B8 8100 Bypass Reservoir Shocks for 2007-2018 Jeep Wrangler JK w/3.5-5" lift Rear Right
Part Numbers & Details
Bilstein 2 Year Warranty
Manufacturer Warranty protects against defects and premature failure.Fits vehicles 3.5-5" rear lift
Shocks are extended length for 3.5-5" rear lift systemsReservoir Mounts Included
All necessary washers, bushings, and nuts included. Factory shock mounting bolts are reused for installation. An optional billet aluminum reservoir clamp is available for a more clean and compact look.Adjustable Rebound & Compression
Dual tube external bypass offers position sensitive damping with independent adjustment for rebound and compression.Durable Design
60mm large bore hard anodized aluminum piston provides a greater ranger of damping control and long term durability.Bilstein twin-tube technology
Twin-tube shocks utilize double-walled technology, where the piston divides the interior oil chamber into two working chambers. Under load, the piston pushes the oil down through the inner working chamber and up into the outer chamber. During rebound, the oil flows back through the piston valve to create a damping effect.Bilstein Gas-Pressure Technology
Traditional oil shock absorbers, when put under extreme stress, can lead to oil foaming which causes shock fading and results in damping power reduction. In the 1950s Bilstein found the solution to this problem by developing gas-pressure technology.Specifications
| Part Number | Item | Quantity | Extended Length | Compressed Length | Travel | Top Mount | Bottom Mount | Reservoir | Adjustable Damping | Finish | Boot Included |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 25-291315 | Shock Absorber | 1 | 27.83" | 17.17" | 11" | BARPIN | EYELET | Yes | Double Adjustable Compression and Rebound with Click Adjuster Knobs | EVO Grey | No |
Product Details
Bilstein B8 8100 (Bypass) is a direct fit, position sensitive damper specifically designed for light trucks and SUVs. Bypass shock absorbers offer the most compliant ride in all conditions and provide maximum bottom out control when the road gets rough. Utilizing an adjustable external bypass shock is the easiest and most effective way to tune your suspension for ultimate performance. Incremental flow adjuster offers finite and incremental changes in damping force for precise adjustments.
$409.15
Original: $1,169.00
-65%Bilstein B8 8100 Bypass Reservoir Shocks for 2007-2018 Jeep Wrangler JK w/3.5-5" lift Rear Right—
$1,169.00
$409.15Bilstein B8 8100 Bypass Reservoir Shocks for 2007-2018 Jeep Wrangler JK w/3.5-5" lift Rear Right
Part Numbers & Details
Package Contains 1 Shock
You'll be getting one shock absorber.Bilstein 2 Year Warranty
Manufacturer Warranty protects against defects and premature failure.Fits vehicles 3.5-5" rear lift
Shocks are extended length for 3.5-5" rear lift systemsReservoir Mounts Included
All necessary washers, bushings, and nuts included. Factory shock mounting bolts are reused for installation. An optional billet aluminum reservoir clamp is available for a more clean and compact look.Adjustable Rebound & Compression
Dual tube external bypass offers position sensitive damping with independent adjustment for rebound and compression.Durable Design
60mm large bore hard anodized aluminum piston provides a greater ranger of damping control and long term durability.Bilstein twin-tube technology
Twin-tube shocks utilize double-walled technology, where the piston divides the interior oil chamber into two working chambers. Under load, the piston pushes the oil down through the inner working chamber and up into the outer chamber. During rebound, the oil flows back through the piston valve to create a damping effect.Bilstein Gas-Pressure Technology
Traditional oil shock absorbers, when put under extreme stress, can lead to oil foaming which causes shock fading and results in damping power reduction. In the 1950s Bilstein found the solution to this problem by developing gas-pressure technology.Specifications
| Part Number | Item | Quantity | Extended Length | Compressed Length | Travel | Top Mount | Bottom Mount | Reservoir | Adjustable Damping | Finish | Boot Included |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 25-291315 | Shock Absorber | 1 | 27.83" | 17.17" | 11" | BARPIN | EYELET | Yes | Double Adjustable Compression and Rebound with Click Adjuster Knobs | EVO Grey | No |
Product Details
Bilstein B8 8100 (Bypass) is a direct fit, position sensitive damper specifically designed for light trucks and SUVs. Bypass shock absorbers offer the most compliant ride in all conditions and provide maximum bottom out control when the road gets rough. Utilizing an adjustable external bypass shock is the easiest and most effective way to tune your suspension for ultimate performance. Incremental flow adjuster offers finite and incremental changes in damping force for precise adjustments.
