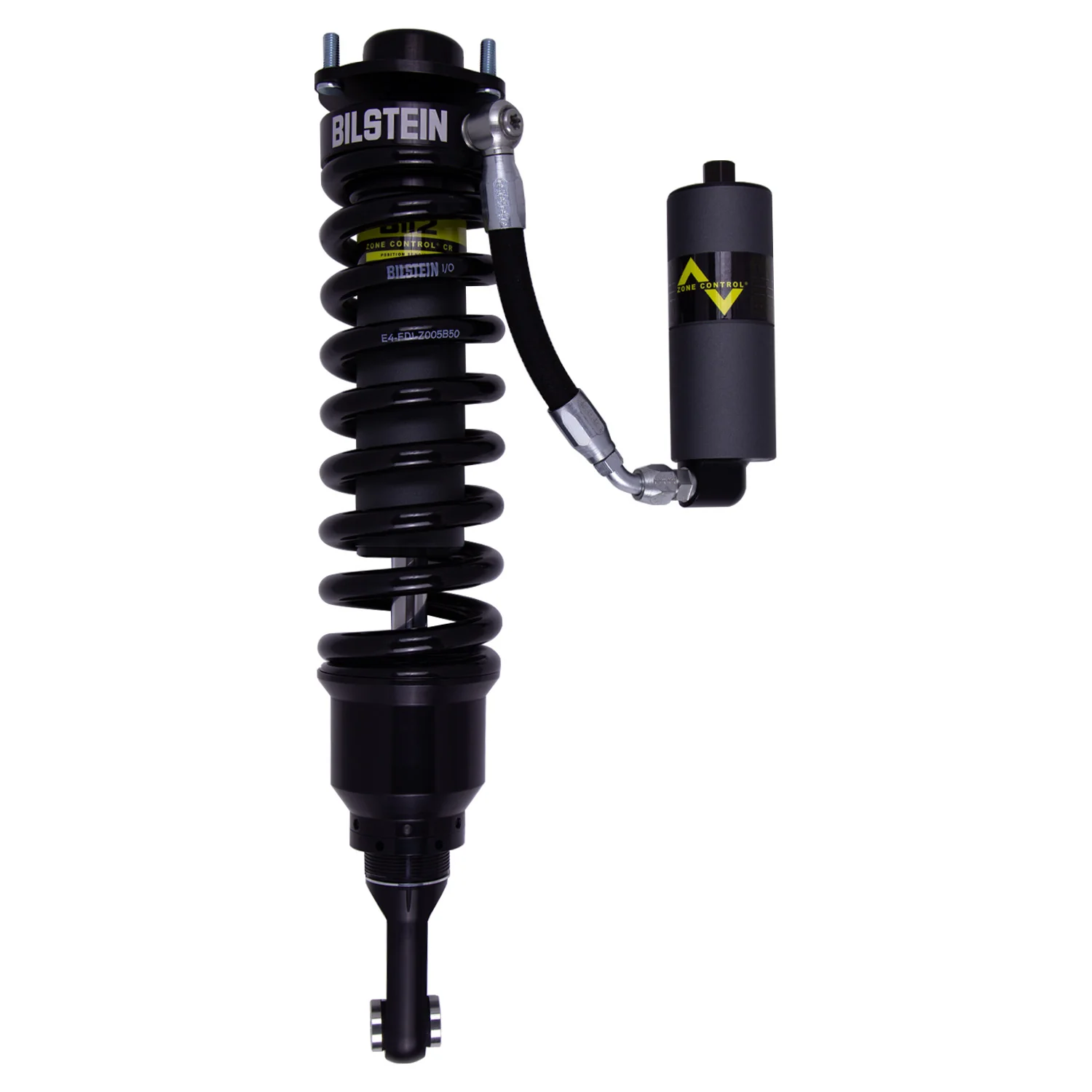

Bilstein B8 8112 ZoneControl CR Coilover w/ Reservoir for 2010-2023 Lexus GX460 4WD w/1-3.2" lift KDSS/Front Right
Bilstein B8 8112 ZoneControl CR Coilover w/ Reservoir for 2010-2023 Lexus GX460 4WD w/1-3.2" lift KDSS/Front Right
Part Numbers & Details
Bilstein 2 Year Warranty
Manufacturer Warranty protects against defects and premature failure.Lifts your vehicle 1-3.2" in the front
Springs will lift the vehicle 1-3.2" in the front.Excludes XREAS
Does not work with XREAS, system must be removed to work with these parts.Designed for 4WD vehicles
This product only works for 4WD vehicles.Aftermarket UCA
Aftermarket UCA requiredReservoir Mounts Included
All necessary washers, bushings, and nuts included. Factory shock mounting bolts are reused for installation. An optional billet aluminum reservoir clamp is available for a more clean and compact look.ZoneControl CR
Position sensitive damping with 3 compression zones and 2 rebound zones, controlled by 3 independent pistons.Compression (C)
Provides bottom out control through a 2-stage, telescoping internal compression stop. This feature eliminates the need for an external hydraulic bump stop.Rebound (R)
Secondary rebound stop will dissipate spring energy and stabilize the suspension large compression. An internal rebound stop eliminates harsh top-out events so that limit straps are not needed.Triple Piston Design
Allows for livable comfort and every-day driving while handling massive suspension inputs with a high degree of controlSpecifications
| Part Number | Lift/Lowered | Position | Item | Quantity |
|---|---|---|---|---|
| 41-324165 | 1-3.2" Lift | Front Right | Strut & Spring | 1 |
Product Details
Transitioning from comfortable cruising on the pavement to conquering offroad terrain happens seamlessly thanks to Bilstein's revolutionary damping technology, and strict attention to detail during extensive product development. The external coilovers spring rate is vehicle specific and preloaded to factory specifications, however, the threaded retainer still allows an additional 2 inches of ride height adjustment. The 60mm remote reservoir provides increased oil capacity and enhances cooling. Designed for each vehicle application, a frame mounted, anodized aluminum reservoir mount is included. Aerospace quality materials and precise manufacturing means your Bilstein B8 8112 ZoneControl shocks will provide years of reliable service, and unmatched performance.
